The plug valve is a commonly used fluid control valve, widely applied in industries such as oil, natural gas, and chemicals due to its high sealing performance and ease of operation. The valve features a simple design, where a rotating plug controls the flow direction of the fluid, ensuring safe operation in systems involving high pressure, high temperature, and hazardous media. 1. Working Principle The core structure of a plug valve is a cylindrical or conical plug with a through passage. When the plug rotates, the passage aligns or misaligns with the fluid pathway of the valve body, thus controlling the opening and closing of the valve. (1) Open Position When the passage on the plug valve aligns with the fluid pathway of the valve body, the fluid can flow directly through the valve, ensuring an unobstructed flow. This design minimizes pressure loss during fluid flow, making it suitable for applications where maintaining stable flow is essential. (2) Closed Position When the plug is rotated 90 degrees, the passage becomes perpendicular to the fluid pathway, completely cutting off the flow of fluid, achieving the closed position. The 90-degree rotation of the plug valve allows for a complete shutdown of the fluid flow, offering a quick response, making it ideal for emergency shut-off applications. 2. Structural Characteristics (1) Types of Plug Valves Plug valves typically come in two types: conical and cylindrical plugs. The conical plug provides better sealing performance but may require additional lubrication or material support at high temperatures, while the cylindrical plug operates smoothly and is suitable for applications requiring frequent on/off operation. (2) Sealing Materials The sealing design of plug valves typically uses PTFE (Polytetrafluoroethylene) or other non-metallic lining materials, which offer high corrosion resistance and flexibility, ensuring good sealing performance even under high pressure. Additionally, some high-end plug valves employ metal-to-metal sealing for extreme environments, preventing seal failure. (3) Wear and Corrosion Resistance The internal materials of plug valves are typically made of corrosion-resistant materials such as stainless steel or nickel-based alloys, preventing wear caused by medium corrosion. This makes them suitable for transporting acidic or corrosive media and is commonly used in the chemical industry and refining systems. (4) Simple Maintenance The internal structure of the plug valve is simple, with no complex springs or valve disc mechanisms, making disassembly and maintenance relatively easy. In high-temperature and high-pressure environments, specific materials and designs can be selected to extend the valve’s service life and reduce subsequent maintenance costs. 3. Application Scenarios The application of plug valves is commonly found in critical situations where leakage prevention is essential, as well as in systems requiring rapid opening and closing or fluid shut-off. Below are ...
A sleeved plug valve is a specific type of plug valve designed with a non-metallic sleeve or liner that surrounds the plug, creating a tight seal. This sleeve, often made from materials like PTFE (polytetrafluoroethylene), ensures a low-friction, corrosion-resistant seal, making the valve suitable for various applications where leakage prevention, durability, and chemical resistance are crucial. 1. How Sleeved Plug Valves Work In a sleeved plug valve, the plug rotates within a sleeve liner rather than directly against the metal body. This design reduces wear on the valve body and allows for smoother, more consistent operation. When the valve handle is turned, the plug rotates, opening or closing the flow path. The sleeve not only provides a tight seal but also allows for a self-lubricating effect, enhancing the valve’s longevity and performance. 2. Key Features and Advantages (1) Leakage Prevention The non-metallic sleeve acts as a reliable seal around the plug, minimizing the risk of external leakage. This feature is especially important in industries handling hazardous chemicals, as it prevents leaks and potential environmental contamination. (2) Corrosion and Chemical Resistance Sleeved plug valves are ideal for handling corrosive or abrasive fluids. The PTFE or other chemically resistant materials used for the sleeve make the valve suitable for environments where standard metal-on-metal contact would degrade over time. (3) Low Maintenance Due to their self-lubricating design, sleeved plug valves require less frequent maintenance compared to traditional plug valves. The sleeve also absorbs some wear, reducing the need for frequent replacements and improving overall valve durability. 3. Applications Industries such as chemical processing, water treatment, and oil and gas frequently use sleeved plug valves due to their reliability and ability to handle tough operating conditions. These valves perform well in systems that require minimal leakage, resistance to aggressive fluids, and easy maintenance.
1. Core Function of Gate Valves Gate valves are primarily used for on/off control in industrial pipelines, where the valve is either fully open or fully closed. This makes them particularly suited for applications that require an unobstructed flow path with minimal pressure drop. 2. Best for Straight-line Flow Systems One of the ideal applications for gate valves is in straight-line flow systems where flow restriction must be minimized. When fully open, the gate valve provides a clear, uninterrupted flow path, making it an excellent choice for such environments. 3. Widely Used in Isolation Services Gate valves excel in isolation services, where they are used to completely block or allow flow. This makes them essential for systems that require reliable shut-off, such as those in the oil, gas, and chemical industries. 4. Ideal for Large Diameter and High-Pressure Systems For large diameter pipelines and high-pressure applications, gate valves are highly effective. They are commonly used in industries where both large volumes of fluid and high pressure must be managed, thanks to their durability and reliable operation. 5. Limitations in Use However, gate valves are not recommended for throttling, frequent operation, or for use in systems with debris. These conditions can cause wear on the valve seat, potentially leading to reduced performance over time.

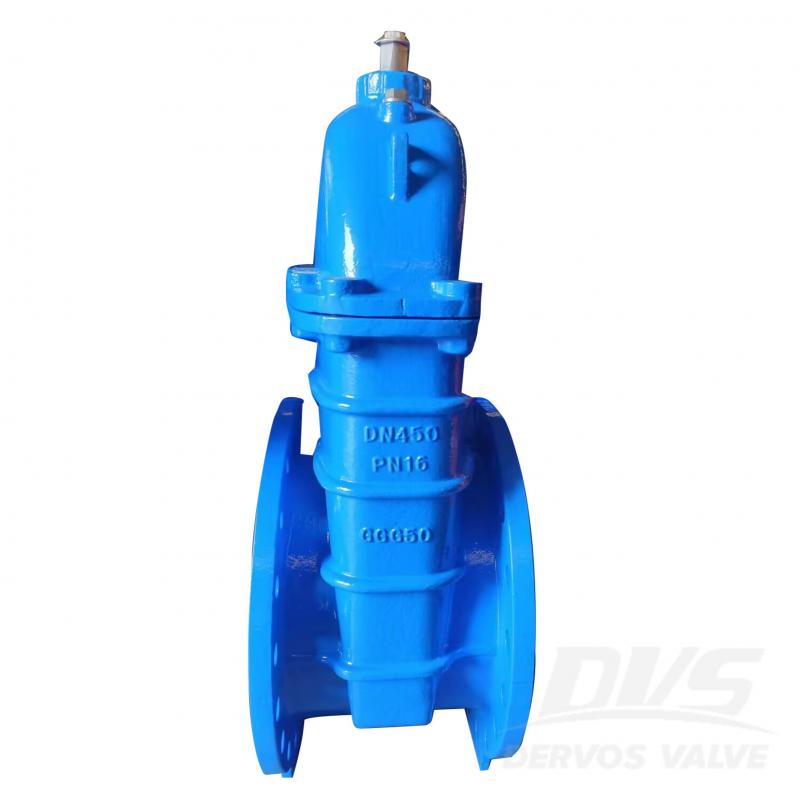

DN450 PN16 ductile iron gate valve is made according to DIN standard. The valve body is made of GGG50. It has the structural characteristics of F4 drinking water soft valve, and structural length of 330mm. Its connection mode is RF. And it has hand wheel operation mode.
Payment:
30% when order confirmed, 70% before shipmentProduct Origin:
ChinaColor:
CustomizationShipping Port:
Shanghai, ChinaLead Time:
30~60 days Ex Works after order confirmationMaterial:
Ductile IronMethod of Operation:
Hand WheelProduct Description
|
Type |
Ductile Iron Gate Valve |
|
Size |
DN450 |
|
Pressure |
PN16 |
|
Connection |
RF |
|
Operation |
Hand Wheel |
|
Body Material |
Ductile Iron |
|
Design Norm |
DIN |
|
Applicable Medium |
Water, Oil and Gas |
Features
1. Ductile iron gate valves are known for their high tensile strength and durability, making them suitable for demanding applications.
2. Ductile iron gate valves are ideal for use in harsh environments where they might be exposed to corrosive substances.

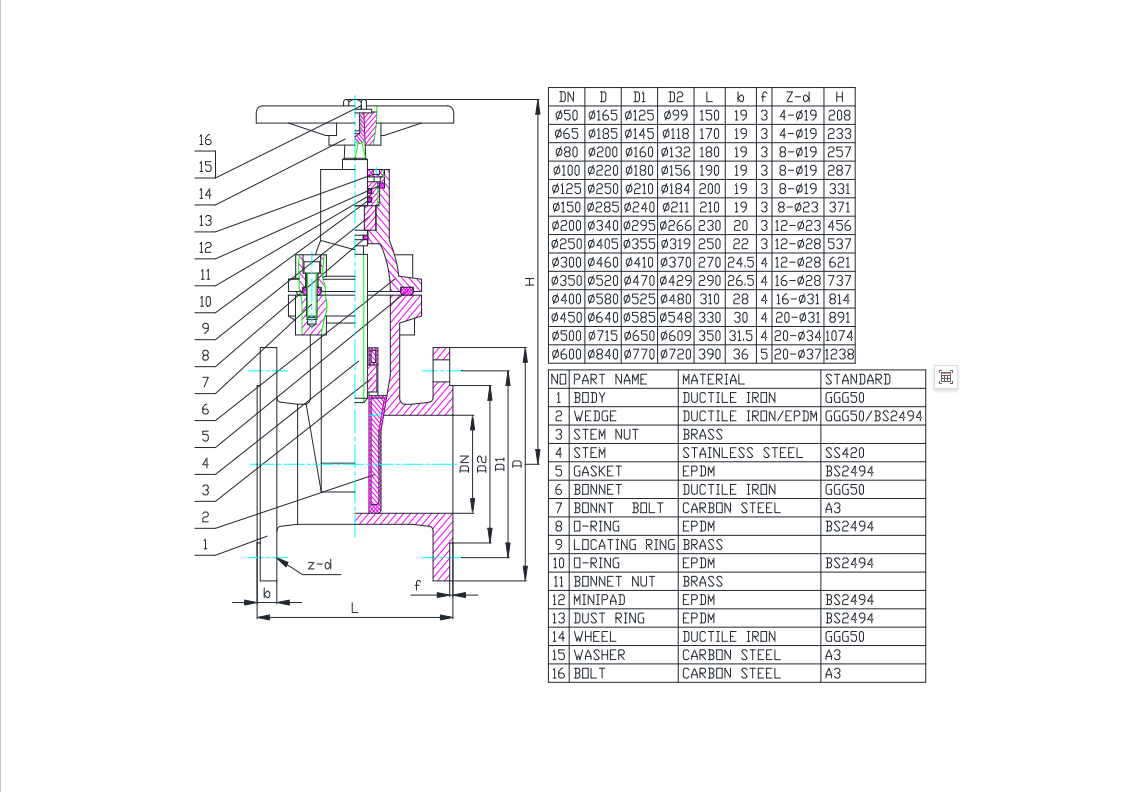

Technical Drawing

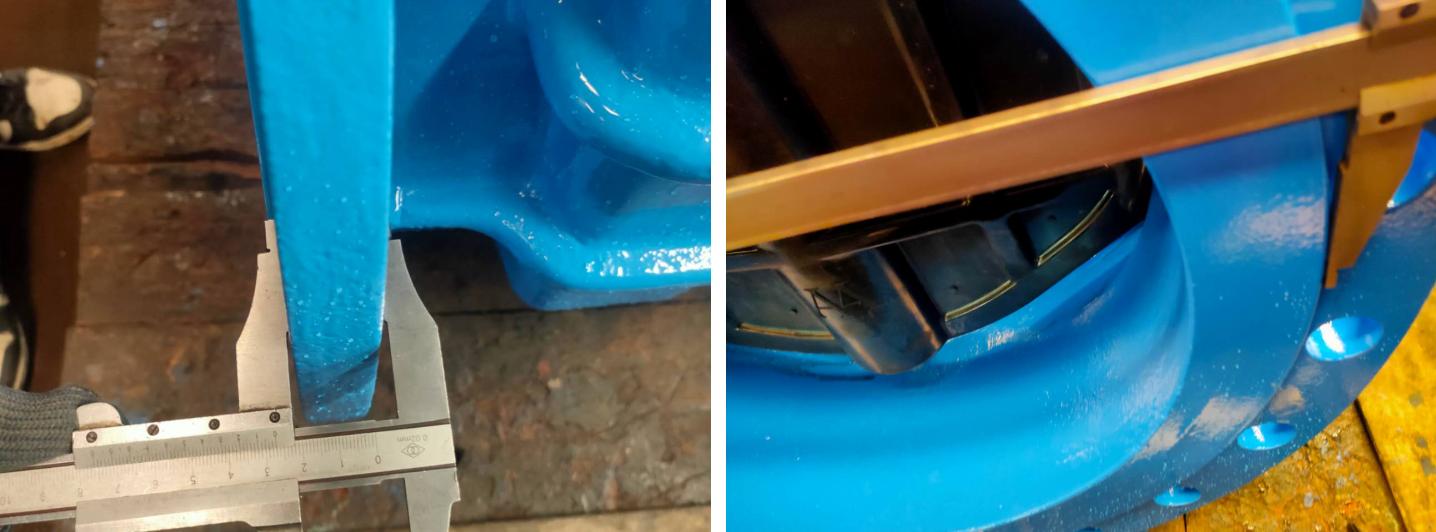

Dimension Checking
Pressure Testing

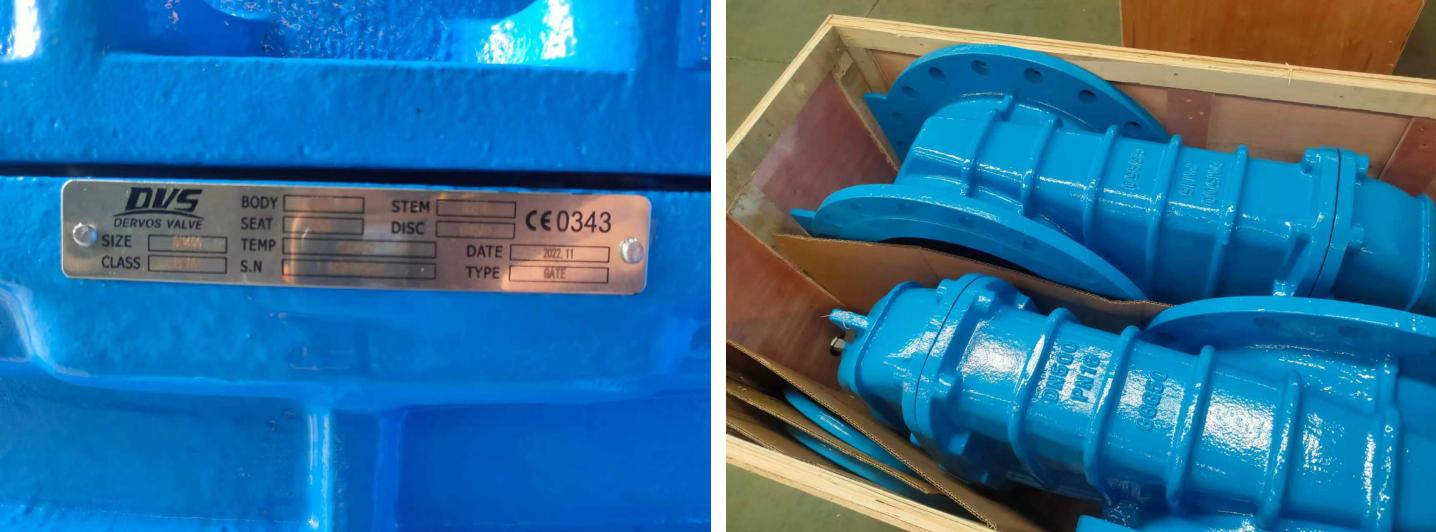

Nameplate & Packing

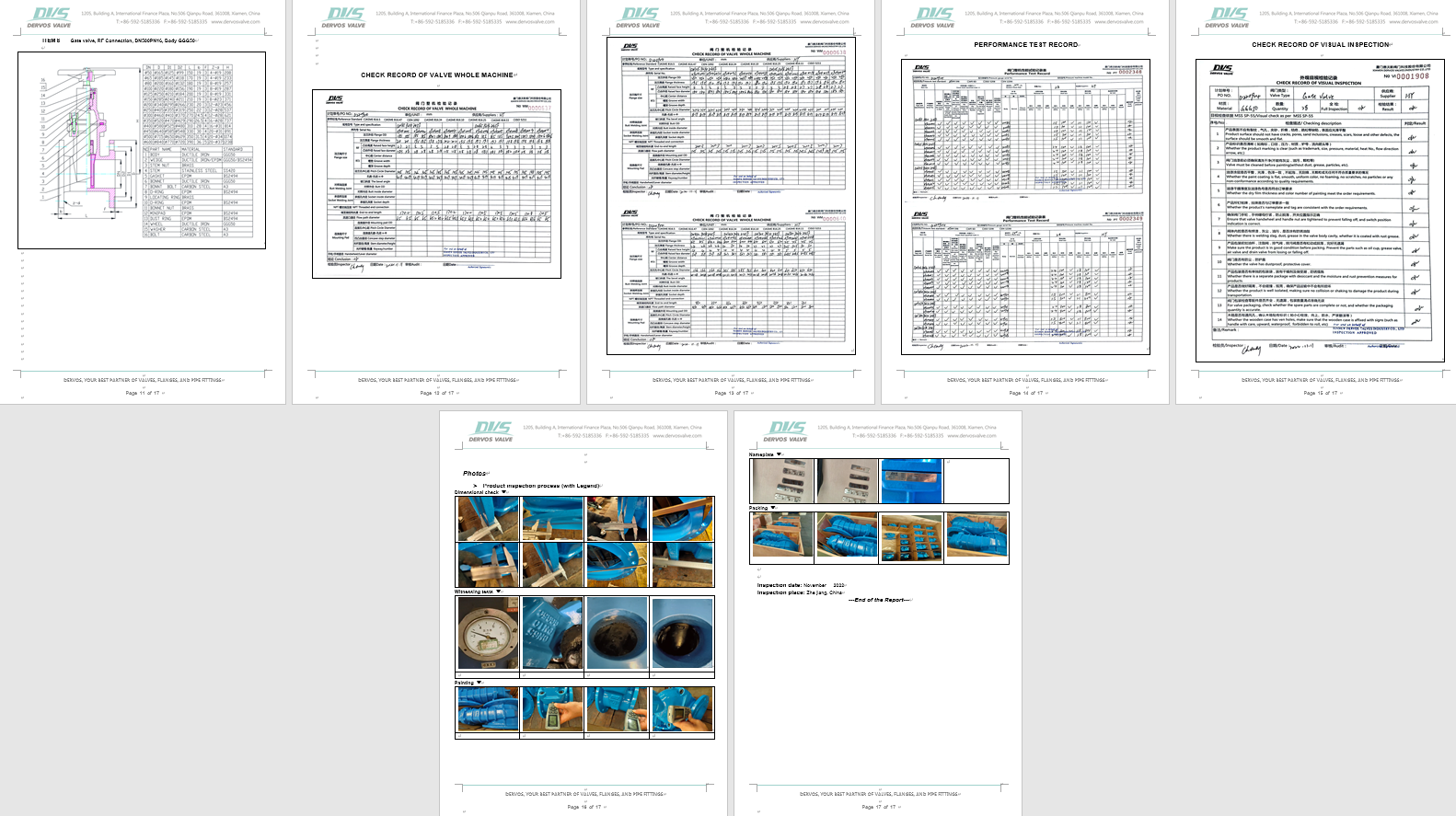

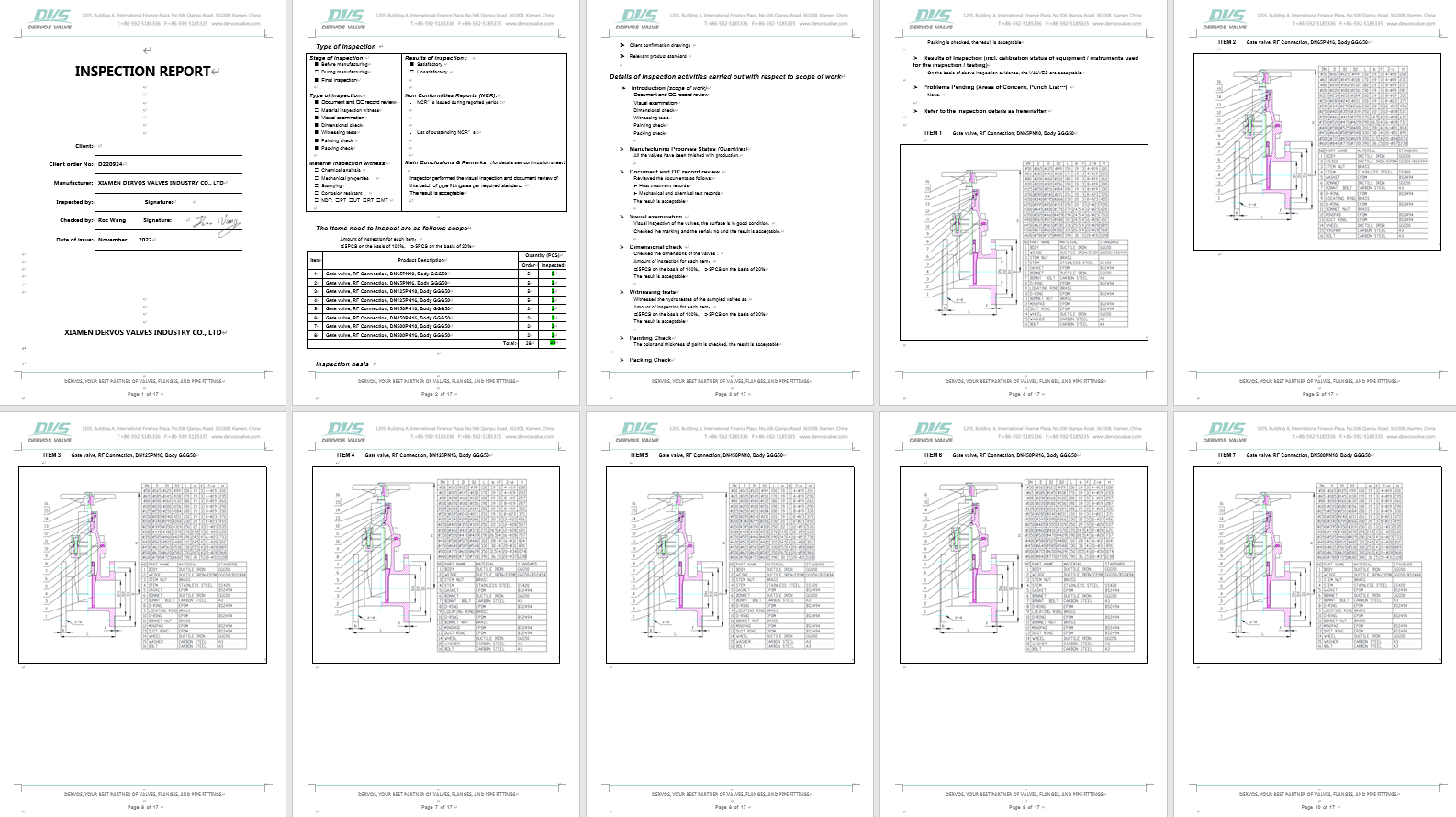

Inspection report
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
1" 600LB plug valve is made according to API 6D standard. The valve body is made of A105. It has the structural characteristics of oil sealed and full bore. Its connection mode is FNPT. And it has handle (with locking device) operation mode.
This spring loaded check valve, made according to DIN3840, requires no gravity or backflow pressure to work or actuate.It’s body material 1.0619 enable the valve to work under great heat and It’s spring can accommodate a wide range of temperature, too.
The high performance butterfly valve is designed with double eccentric or double offset structure. The valve has cast steel WCB body, stainless steel disc and stem along with RPTFE soft seat. Quick Detail Type Butterfly Valve Nominal Size 6 Inch Nominal Pressure Class 150 Structure Double Offset, Double Eccentric, Soft Seat Connection Type Lug Type Operation Gear Operated Design Code API 609 Face to Face ASME B16.10 End Connection ASME 16.5 Test & Inspection API 598 Body Material Cast Steel WCB Trim Material CF8M Disc, 17-4PH Stem, RPTFE Seat Application Water, Oil, Gas Dervos Inspection Report
The 12 inch 150 LB triple eccentric butterfly valve is designed per API 609 with flange end and gearbox operation. The valve is made of stainless steel CF8 with metal seat design. Quick Detail Type Butterfly valve Size 12 Inch Pressure 150LB Construction Triple Offset/Eccentric, Metal Seat Connection Type Flange Operation Gearbox Design Code API 609 Face to Face ANSI B16.10 End Connection ANSI B16.5 Test & Inspection API 598 Body Material CF8 Applicable Temp -196℃~+800℃ Application Water, Oil, Gas Materials Dimension
The 3 way T type ball valve owns flange connection, gearbox, ss304 body, ball and stem. The 3 inch flanged ball valve features in its T type three way ports which could connect any pair of ports or three ports together. Quick Detail Type Ball Valve Size 3" Pressure ANSI 300 Construction Three Way Ball Valve Connection Flanged Connection Operation Mode Gearbox Body Material A182 F304 Manufacture and Design API 6D Pressure & Temp ASME B16.34 End to End Code ASME B16.10 End Connection ASME B16.5 Inspection API 6D, API 598 Temperature Range -29℃~+200℃ Medium WOG Related Knowledge What is the difference between T port and L port 3-way ball valve? Normally speaking, 3-way ball valve can be divided into T type and L type. A T port three-way ball valve can connect any two ports, and even connect all three ports together at the same time. However, an L port three-way ball valve can only connect the center port with either side port or disconnect three ports. FAQ 1. Can the orders always be delivered on time? Our purchasing team follows up very closely with each order to make sure on-time delivery for most of orders. In 2018, more than 90% orders were delivered on time, and we are dedicated to doing better. 2. What’s the normal delivery lead time? For normal material, usually the delivery time is about 35~40 days, and for forged material, the delivery can even be shortened to 20~25 days. We believe the short lead time can make our offer more competitive and help you secure more orders. 3.Do you have different price levels for us? With our numerous suppliers, different price levels are available with us, so we are able to help you win more customer from different markets requesting for high, medium and low prices.
The DN100 through conduit slate gate valve is made according to EN558.It is ideal for pipeline applications requiring pigging capability.
Line blind valve (eyeglass valve) is a kind of gate valve that cuts off gas medium manually, electrically or pneumatically or hydraulically. It is generally divided into electric blind valve, hydraulic blind valve, closed plug valve and electric open blind valve.
14" 150LBS swing check valve is made according to BS 1868 standard. The valve body is made of ASTM A216 WCB+STL. It has the structural characteristics of plug cover and swing type. Its connection mode is RF.
The electric control valve is made of carbon steel WCB designed for precise flow control and regulating. Dervos have many suppliers of different control valve types. Quick Detail Type Globe Control Valve Size DN 200 DesignPressure PN 40 ConnectionType RF Flange Design Code ASME B16.34 End Connection ASME B16.5 Face to Face ASME B16.10 Test & Inspection API 598 Body Material A216 WCB TrimMaterial Stainless Steel Application Water, Oil, Gas Company Profile Founded in 2008, DERVOS VALVES INDUSTRY CO., LTD is a professional vendor, exporter and supplier of industrial valves, pipes and fittings. Dervos has expanded its business to five continents around the world, including Europe, Oceania, Africa, America and Asia. Our commitment is to find the most suitable products for our clients in an efficient way. We adopt modern management skills to make sure efficiency in production and selling system. How we handle complaints When complaints come, how do we handle them? We will reply within 24 hours and ask more proof from clients. Then we discuss with QC and factories to identify the reason. In the third day, we will provide a solution to clients.
Designed with 800 LB sw end, the 2 inch globe valve features in plug disc, bolted bonnet, and y type structure. The handwheel operated globe valve is made of forged steel body and stainless steel trim. Quick Detail Type Globe Valve Size 2'' Pressure ANSI 800 Structure Y Type, Y Pattern, Bolted Bonnet ConnectionType SW Operation Handwheel Operated Design Code API 602 Face to Face ASME B16.10 Connection Standard ASME B16.11 Pressure & Temperature ASME B16.34 Test & Inspection Standard API 598 Body Material ASTM A105 ApplicableTemperature -29℃~+425℃ Application Water, Oil, Gas Related Knowledge What is the main reason to use Y-pattern globe valve? A Y type globe is designed with 45° between seat and stem. In other words, the flow will remain straight linear from inlet to outlet ports.Compared to staight pattern globe valve, the y pattern globe valve reduce the flow resistance and pressure drop. This kind of y pattern globe valve is well suited for high pressures and severe application. FAQ 1. How long have you been in business and how long have you producing valves? We have been in valve exporting industry for more than 10 years since foundation in 2008. Our business has expanded tremendously to five continents all around the world. 2. What are your main products and their advantages? Our main products include gate, globe, check, ball, butterfly, plug valves and strainers, available in different materials, sizes and pressure, which are widely used in various industries. 3. Does Xiamen Dervos Valves Industry Co., Ltd. make products for other companies? Yes, of course. We have a reference list with customer information like country, product type, order volume and some even with project names.
The 8 inch Class 2500 gate valve is designed with pressure seal bonnet, butt weld connection, and gearbox operation. The 8 inch gate valve has carbon steel WCB body and trim 5. Quick Detail Type Gate Valve Size 8'' Design Pressure ANSI 2500 Construction Pressure Seal Bonnet, Flexible Wedge, Metal to Metal Seat ConnectionType Butt Weld (SW) OperationType Gearbox Operation Body Material A217 WC6 TrimMaterial Trim 5 Design Code API 600 Face to Face Dimension ASME B16.10 End Connection ASME B16.25 Pressure & Temp ASME B16.34 Medium Water, Oil and Gas Origin China Dimension & Material NPS DN Class 2 2 1/2 3 4 6 8 10 12 14 16 18 20 24 50 65 80 100 150 200 250 300 350 400 450 500 600 L(RF) 900LB 368 419 381 457 610 737 838 965 1029 1130 1500LB 368 419 470 546 705 832 991 1130 1257 1384 2500LB 451 508 578 673 917 1022 1270 L1(BW) 900LB 216 254 305 355 508 660 787 914 991 1092 1346 1473 1600 1500LB 216 254 305 406 559 711 864 991 1067 1194 1697 2500LB 279 330 368 457 610 762 914 1041 1118 1245 L2(RTJ) 900LB 371 422 384 460 613 740 841 968 1038 1140 1500LB 371 422 473 549 711 841 1000 1146 1276 1407 2500LB 454 514 584 683 927 1038 1292 H(Opne) 900LB 554 637 680 796 1084 1372 1494 1550 1960 2210 1500LB 554 637 767 875 1094 1372 1655 1834 2150 2260 2460 2721 2940 2500LB 610 654 753 850 1254 1374 1685 1894 2226 2382 2585 W 900LB 300 350 350 400 560 460* 610* 610* 610* 760* 1500LB 300 450 450 560 305* 460* 610* 610* 760* 760* 2500LB 500 500 600 600 460* 460* 610* Weight (RF) 900LB 50 84 92 154 341 622 950 1295 1720 2380 1500LB 60 91 128 182 394 795 1370 2120 2800 3870 2500LB 121 175 195 229 720 1295 2250 Weight (BW) 900LB 39 64 82 120 266 524 760 1090 1450 2018 1500LB 46 71 85 130 292 578 974 1615 2010 2815 3315 4150 5219 2500LB 88 135 144 158 500 892 1550 1978 2580 3780 5988 *Manual gear operator is recommended No. Part WCB WC6 WC9 C5 CF8 CF8M 1 Body A216 WCB A217 WC6 A217 WC9 A217 C5 A351 CF8 A351 CF8M 2 Seat A182 F6a A182 F22 A182 F22 A182 F5 A182 F304 A182 F316 3 Wedge A216 WCB A217 WC6 A217 WC9 A217 C5 A351 CF8 A351 CF8M 4 Stem A182 F6a SAEHNV3 A182 F304 A182 F316 5 Stuffing Box A216 WCB A217 WC6 A217 WC9 A217 C5 A351 CF8 A351 CF8M 6 Seal Ring ANSI 316L Flexible Graphite+316 7 Split Ring Steel F6 F6 F6 A182 F304 F316 8 Back Ring Steel Steel Steel Steel SS SS 9 Bolt A193 B7 A193 B7 A193 B7 A193 B7 A193 B8 A193 B8 10 Nut A194 2H A194 2H A194 2H A194 2H A194 Gr.8 A194 Gr.8 11 Yoke A216 WCB A217 WC6 A217 WC9 A217 C5 A351 CF8 A351 CF8M 12 Bolt A193 B7 A193 B7 A193 B7 A193 B7 A193 B8 A193 B8 13 Nut A194 2H A194 2H A194 2H A194 2H A194 Gr.8 A194 Gr.8 14 Packing Plate ANSI 410 ANSI 410 ANSI 410 ANSI 410 ANSI 304 ANSI 316 15 Packing Flexible Graphite(Braided and Ring) or PTFE 16 Split Pin Steel Steel Steel Steel Steel Steel 17 Eyebolt A193 B7 A193 B7 A193 B7 A193 B7 A193 B8 A193 B8 18 Gland A182 F6 A182 F6 A182 F6 A182 F6 A182 F304 A182 F316 19 Gland Flange A105 A105 A105 A105 A182 F304 A182 F316 20 Nut A194 2H A194 2H A194 2H A194 2H A194 Gr.8 A194 Gr.8 21 Stud A193 B7 A193 B7 A193 B7 A193 B7 A193 B7 A193 B7 22 Stem Nut Ni-resist A439-D2 23 Gear Box Purchased 24 Protector Steel 25 Nameplate ANSI 304 26 Rivet ANSI 304
16" 900LB ball valve is made according to API 6D standard. The valve body is made of A350 LF2. It has the structural characteristics of fully welded, fixed ball and full bore. Its connection mode is BW. And it has turbine operation mode.
