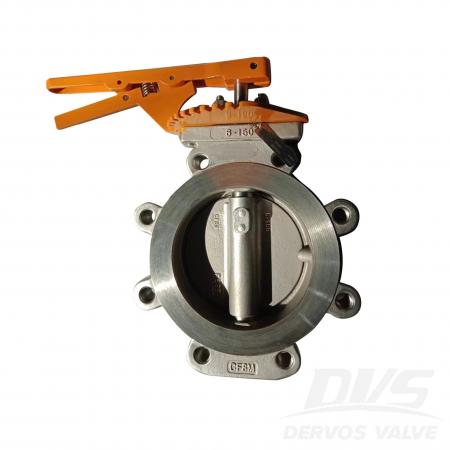

6" 150LBS double eccentric butterfly valve is made according to API 609 standard. The valve body is made of A351 CF8M. It has the structural characteristics of double eccentric and high performance. Its connection mode is lug. And it has lever operation mode.
Payment:
30% when order confirmed, 70% before shipmentProduct Origin:
ChinaColor:
CustomizationShipping Port:
Shanghai, ChinaLead Time:
30~60 days Ex Works after order confirmationMaterial:
A351 CF8MMethod of Operation:
LeverProduct Description
|
Type |
Double Eccentric Butterfly Valve |
|
Size |
6" |
|
Pressure |
150LBS |
|
Connection |
Lug |
|
Operation |
Lever |
|
Body Material |
A351 CF8M |
|
Design Norm |
API 609 |
|
Temperature & Pressure |
ASME B16.34 |
|
Flange Size |
ASME B16.5 |
|
Test & Inspection Code |
API 598 |
|
Temperature |
-29 ~ 150°C |
|
Applicable Medium |
Water, Oil and Gas |
Features
1. Simple structure, easy disassembly and assembly, relatively easy maintenance and repair of valves, reducing downtime and maintenance costs;
2. The double eccentric structure makes the operation of the valve more stable and reliable, and can withstand frequent opening and closing operations without affecting the sealing performance.

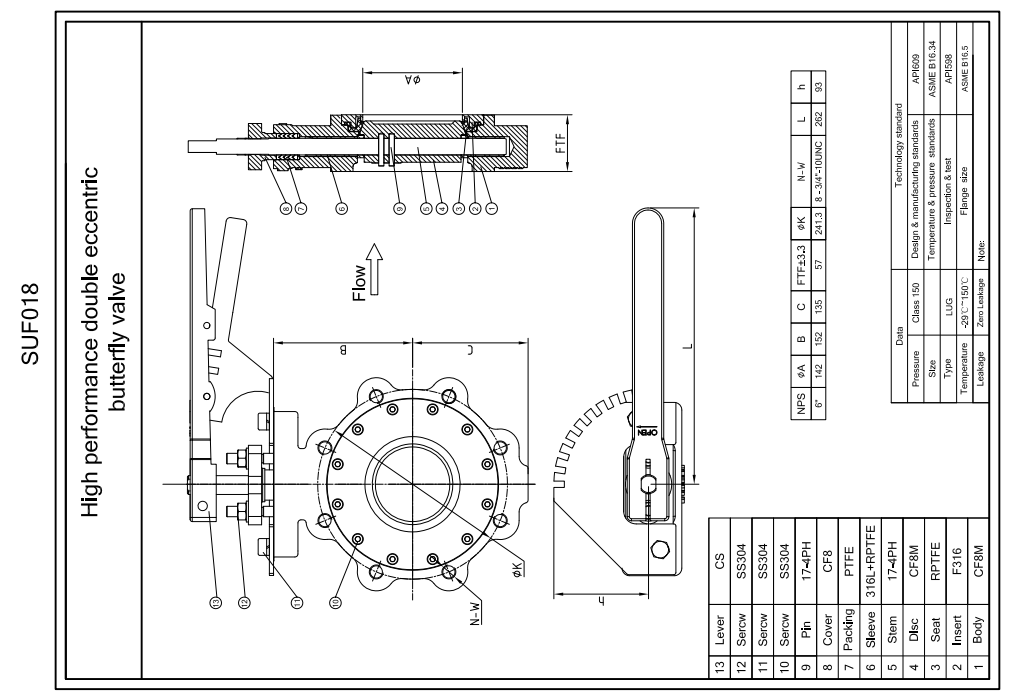

Technical Drawing

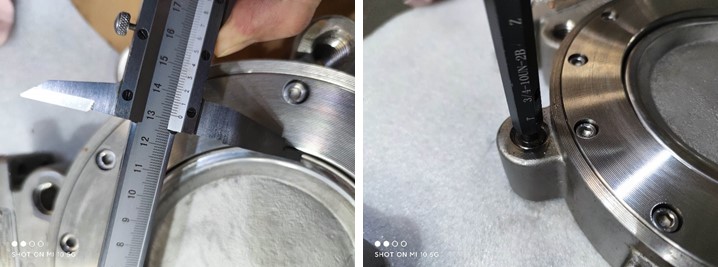

Dimension Checking

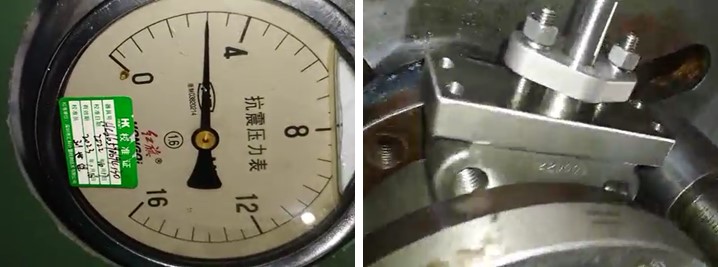

Pressure Testing

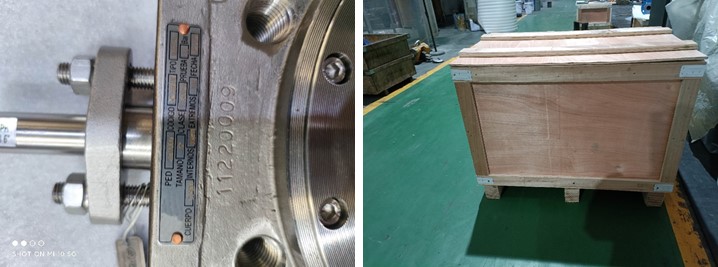

Nameplate & Packing

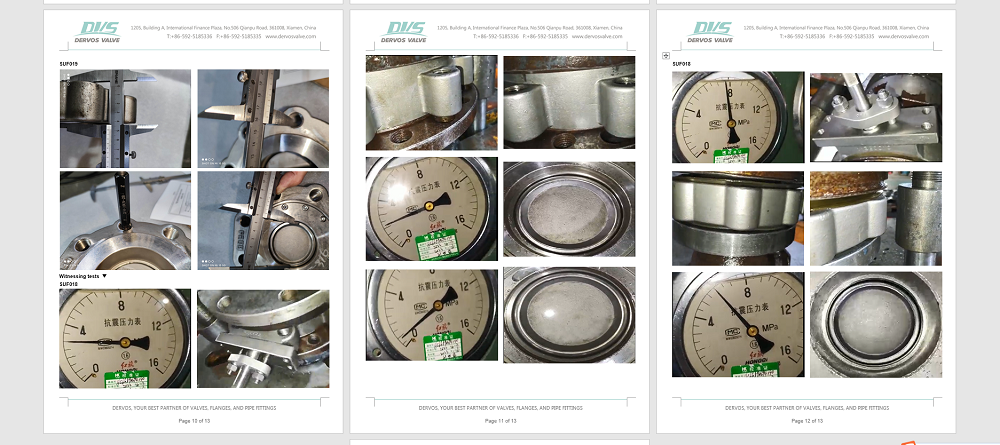

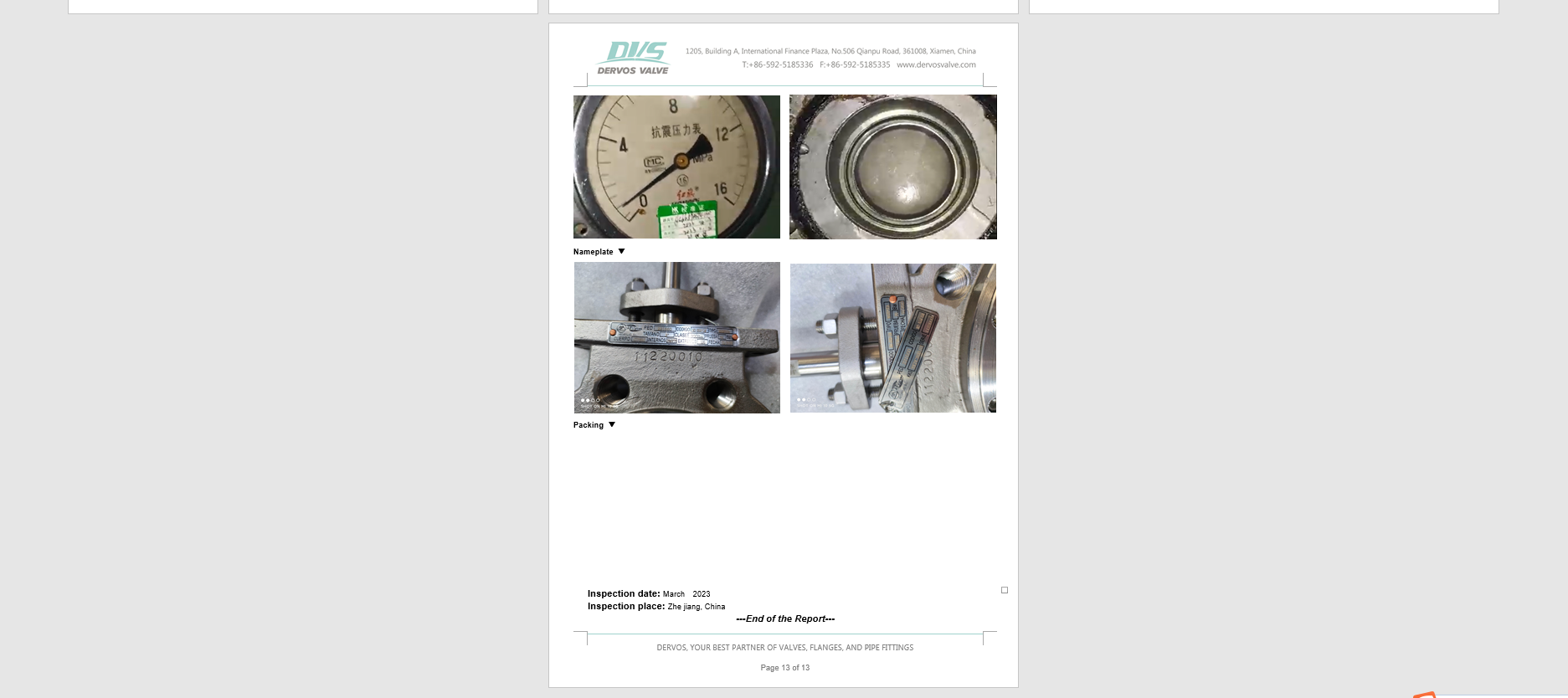

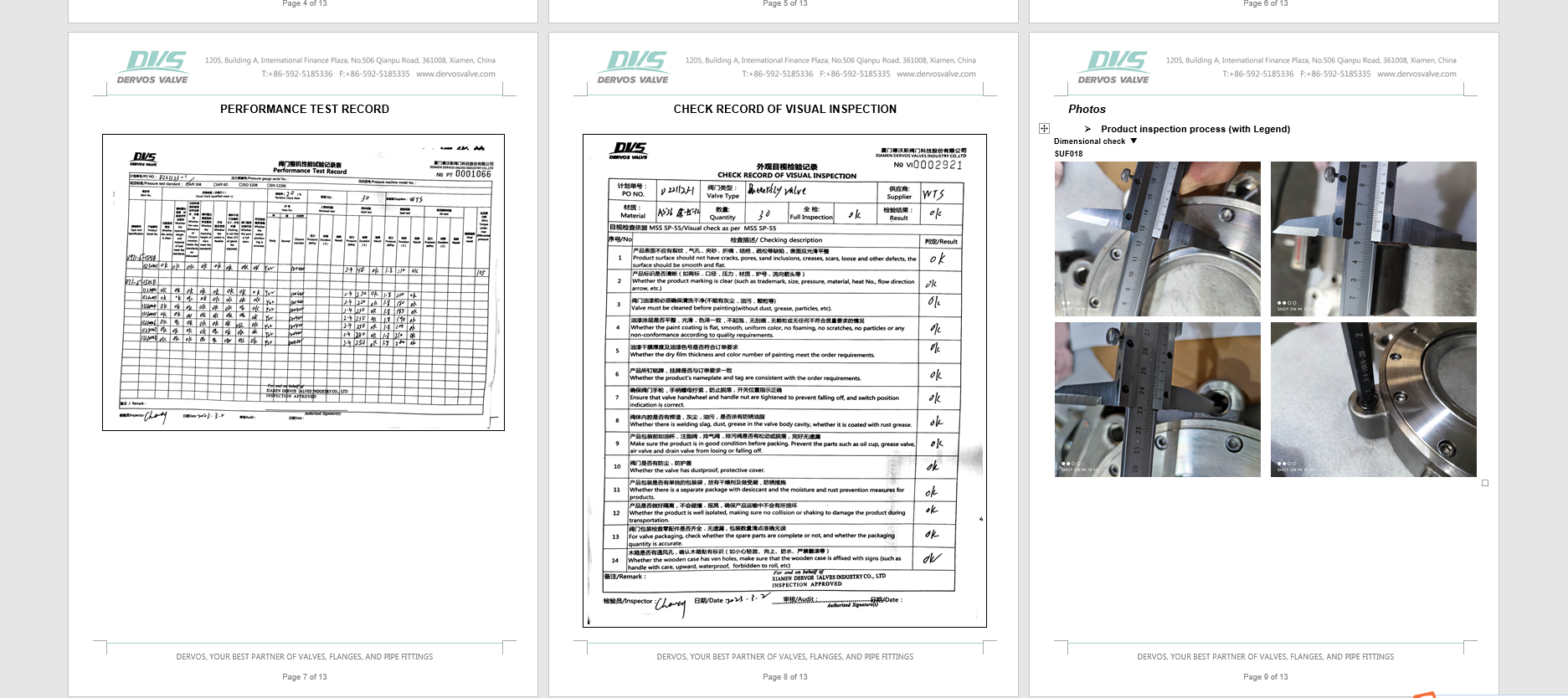

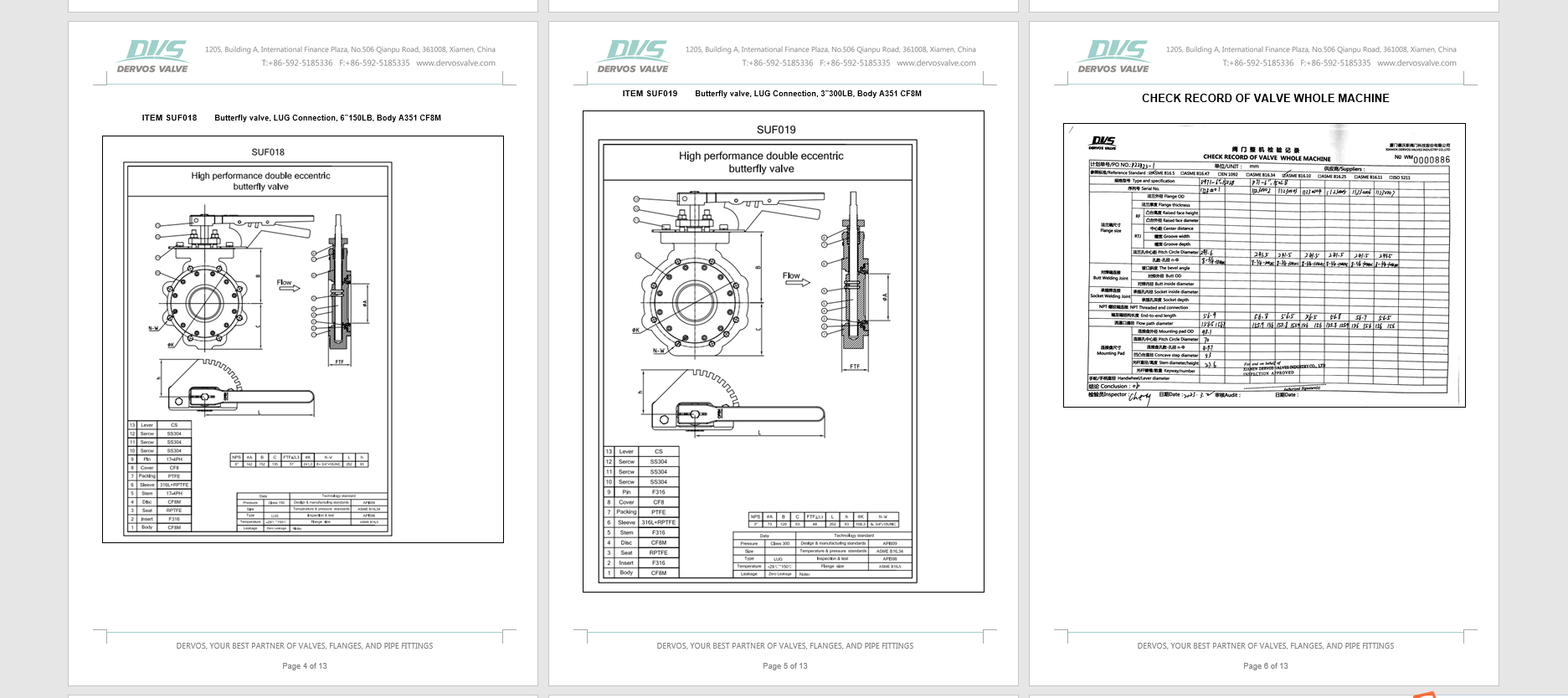

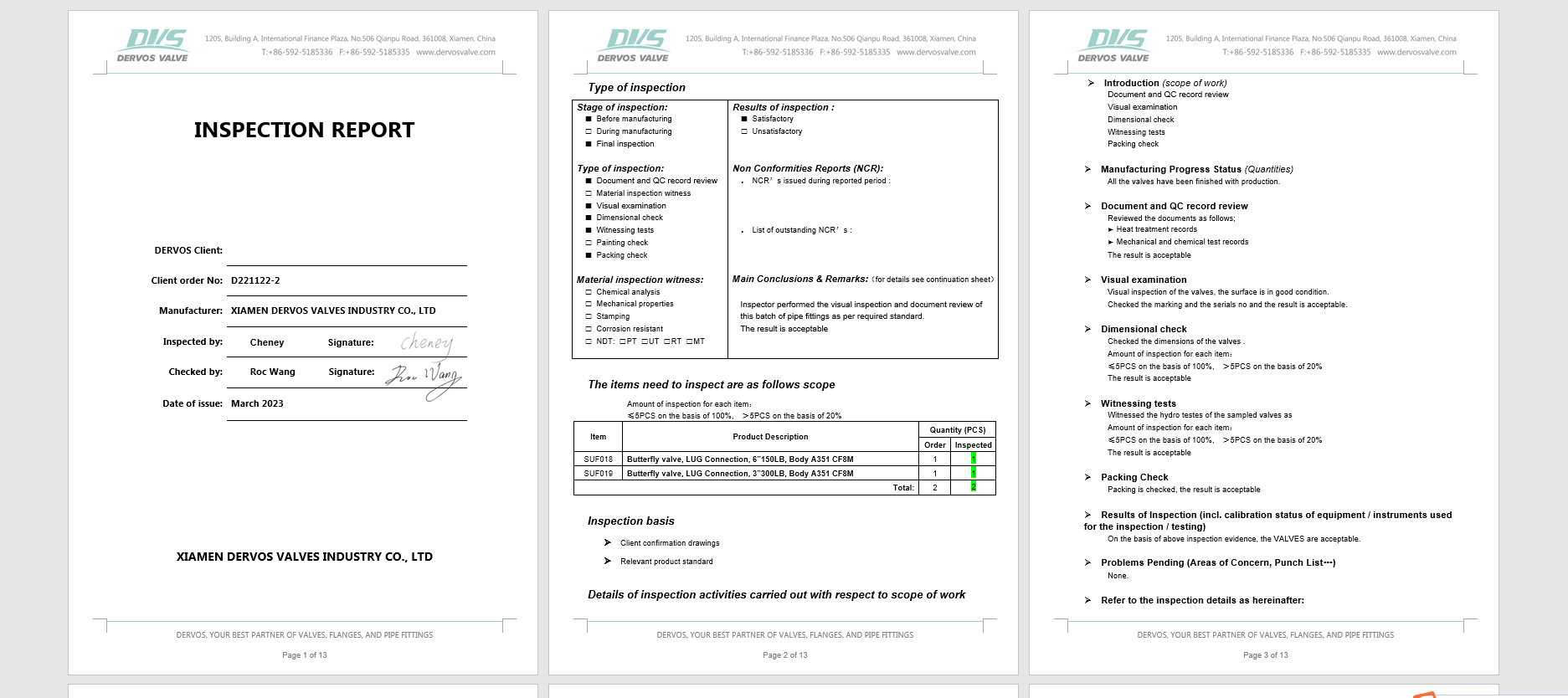

Inspection report
