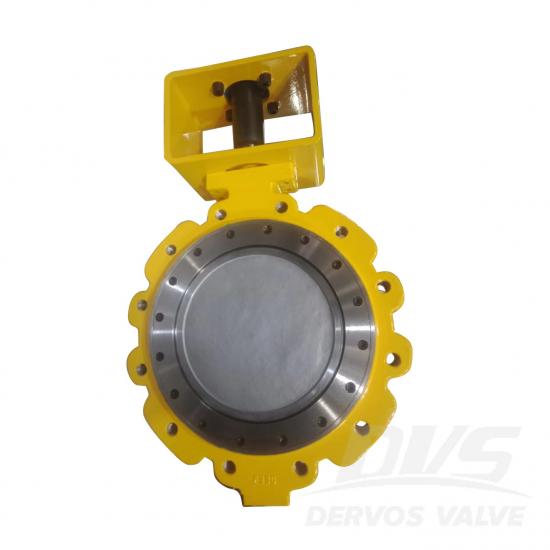

14" 150LB butterfly valve is made according to API 609 standard. The valve body is made of WCB. It has the structural characteristics of double eccentric and high performance. Its connection mode is lug type. And it has turbine with locking device operation mode.
Payment:
30% when order confirmed, 70% before shipmentProduct Origin:
ChinaColor:
CustomizationShipping Port:
Shanghai, ChinaLead Time:
30~60 days Ex Works after order confirmationMaterial:
WCBMethod of Operation:
Turbine with locking deviceProduct Description
|
Type |
Butterfly Valve |
|
Size |
14" |
|
Pressure |
150LB |
|
Connection |
Lug Type |
|
Operation |
Turbine with locking device |
|
Body Material |
WCB |
|
Design Norm |
API 609 |
|
Temperature & pressure standards |
ASME B16.34 |
|
Test & Inspection Code |
API 598 |
|
Flange size |
ASME B16.5 |
|
Temperature |
-29 ~ 180°C |
|
Applicable Medium |
Water, Oil and Gas |
Features
1. Reliable sealing, excellent flow performance, and long service life;
2. Reasonable design, compact structure, easy assembly and disassembly, and easy maintenance.

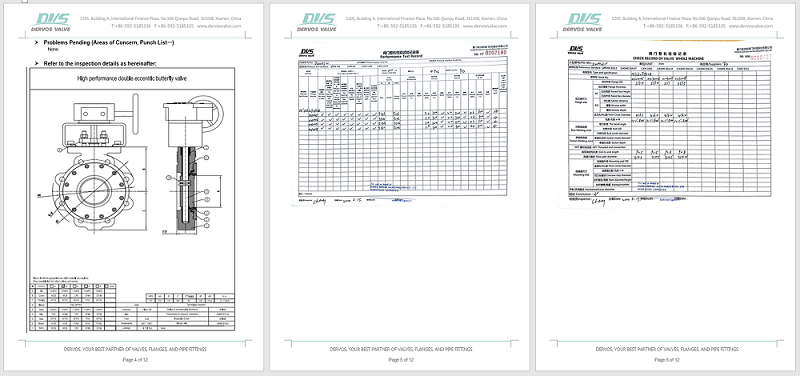

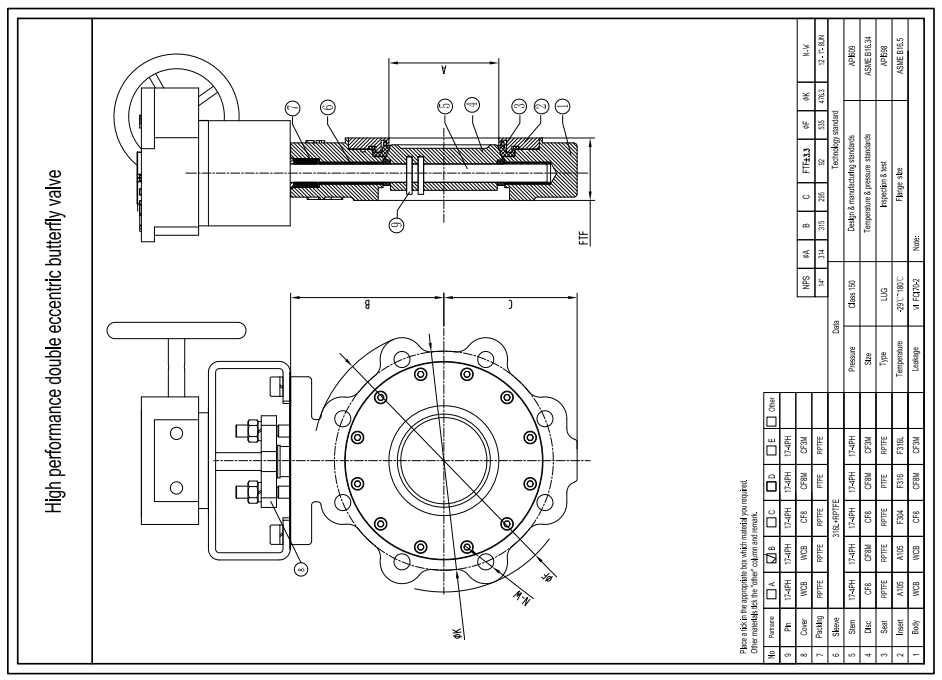

Technical Drawing

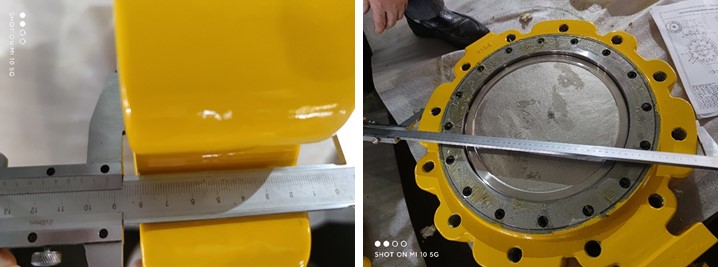

Dimension Checking

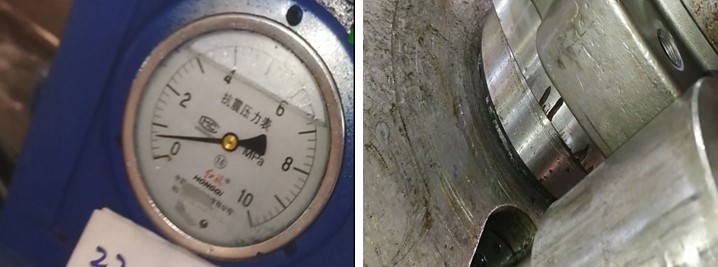

Pressure Testing

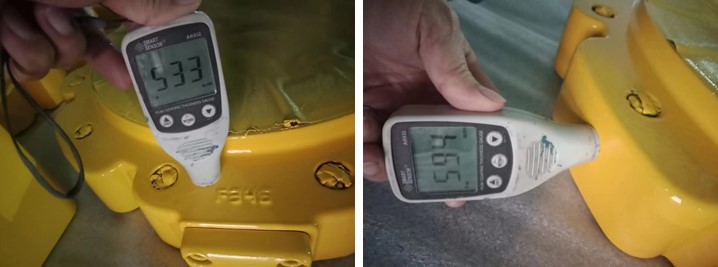

Painting

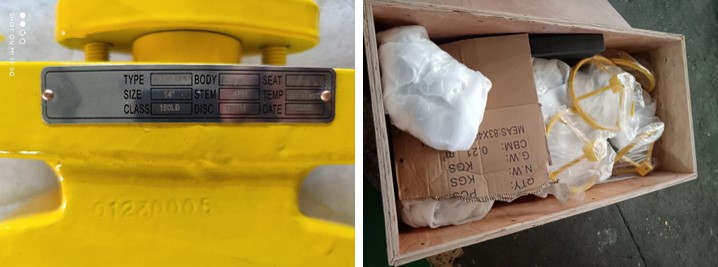

Nameplate & Packing

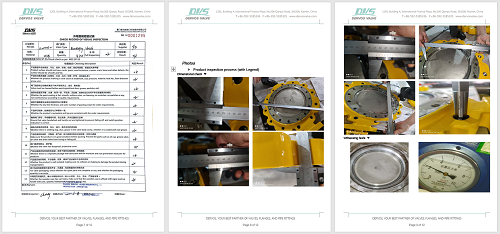

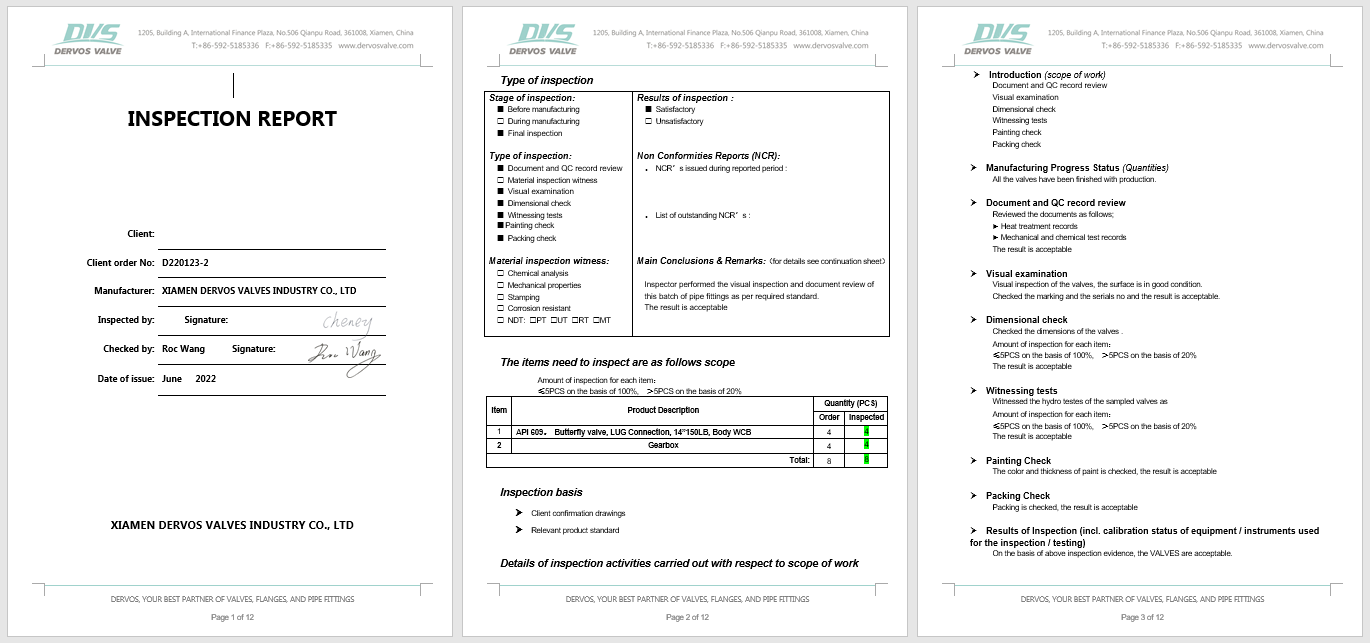

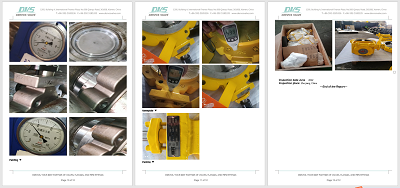

Inspection report
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
