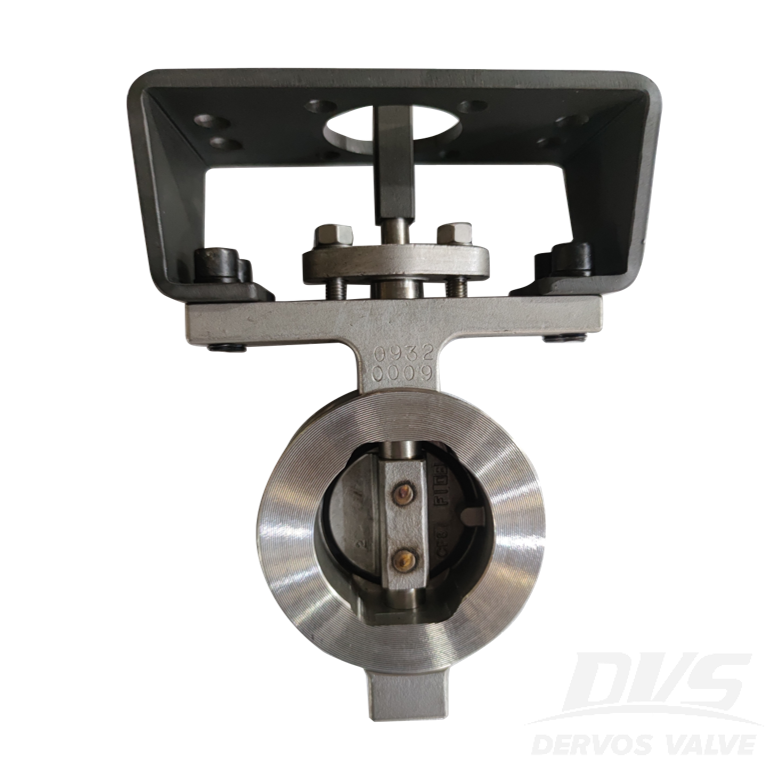

2" 150LB butterfly valve is made according to API609 standard. The valve body is made of CF8. It has the structural characteristics of high performance and double eccentric. Its connection mode is wafer. And it has bare stem with bracket operation mode.
Payment:
30% when order confirmed, 70% before shipmentProduct Origin:
ChinaColor:
CustomizationShipping Port:
Shanghai, ChinaLead Time:
30~60 days Ex Works after order confirmationMaterial:
CF8Method of Operation:
Bare Stem with BracketProduct Description
|
Type |
Eccentric Butterfly Valve |
|
Size |
2" |
|
Pressure |
150LB |
|
Connection |
Wafer |
|
Operation |
Bare Stem with Bracket |
|
Body Material |
CF8 |
|
Design Norm |
API609 |
|
Temperature & Pressure |
ASME B16.34 |
|
Flange Size |
ASME B16.5 |
|
Test & Inspection Code |
API598 |
|
Temperature |
-29 ~ 180°C |
|
Applicable Medium |
Water, Oil and Gas |
Features
1. Reduces wear, friction, and leakage by minimizing contact between the valve disc and seat during operation. Enables tighter shut-off and improved flow characteristics.
2. Achieves exceptional sealing capabilities with high-quality materials, suitable for demanding applications. Ensures bubble-tight shut-off and reliable performance over time.
Technical Drawing

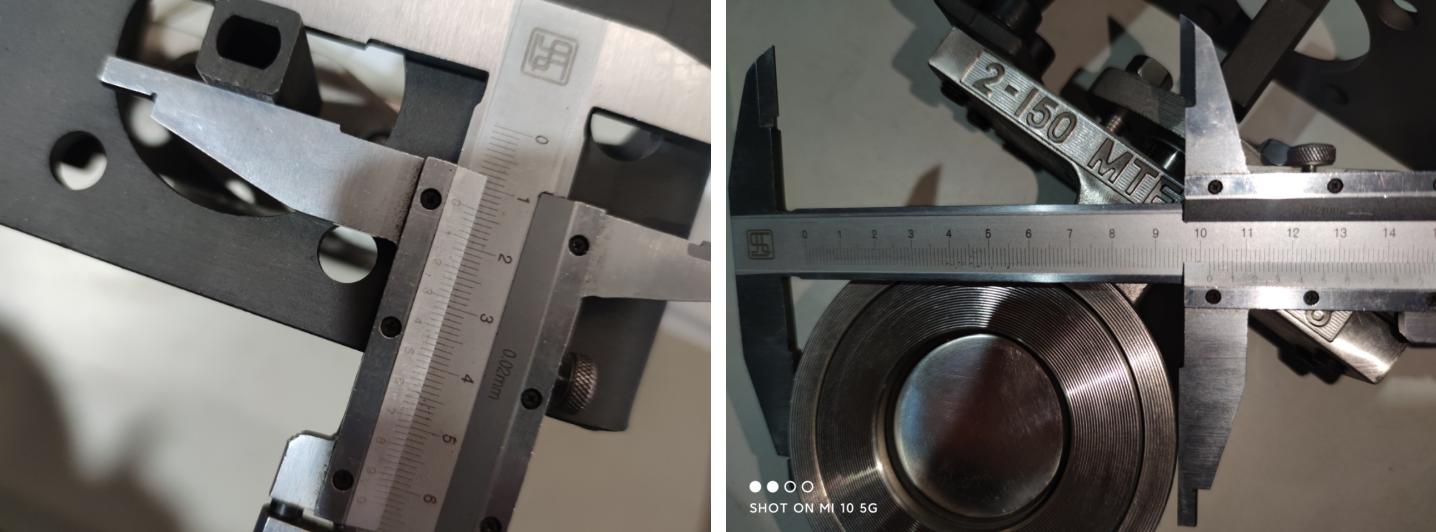

Dimension Checking

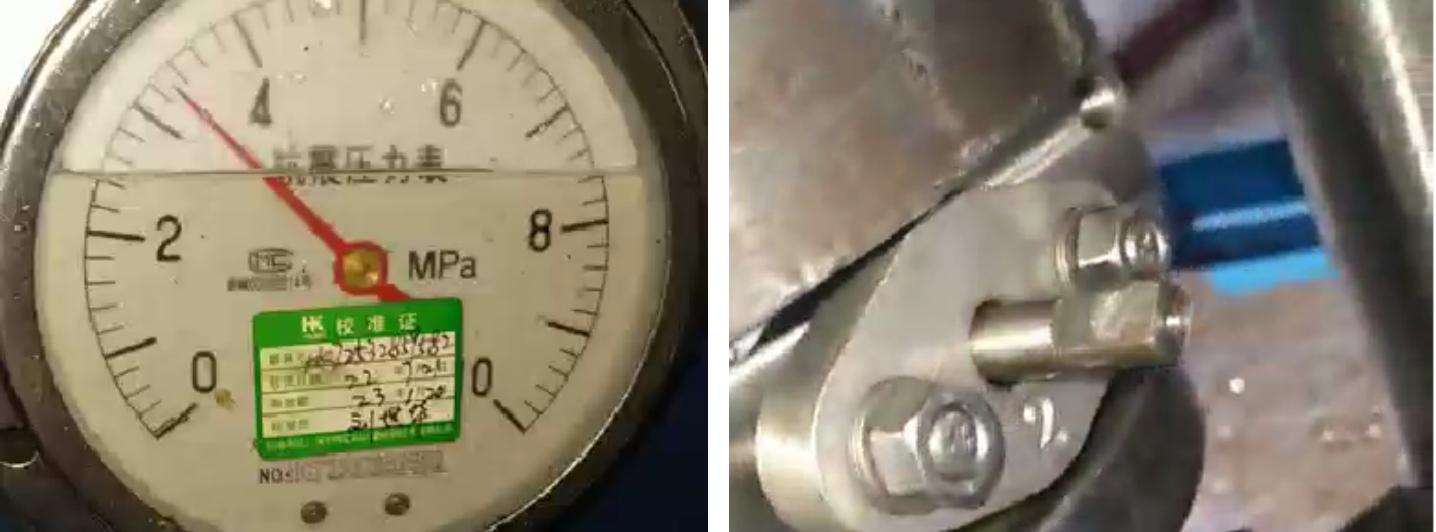

Pressure Testing
Packing

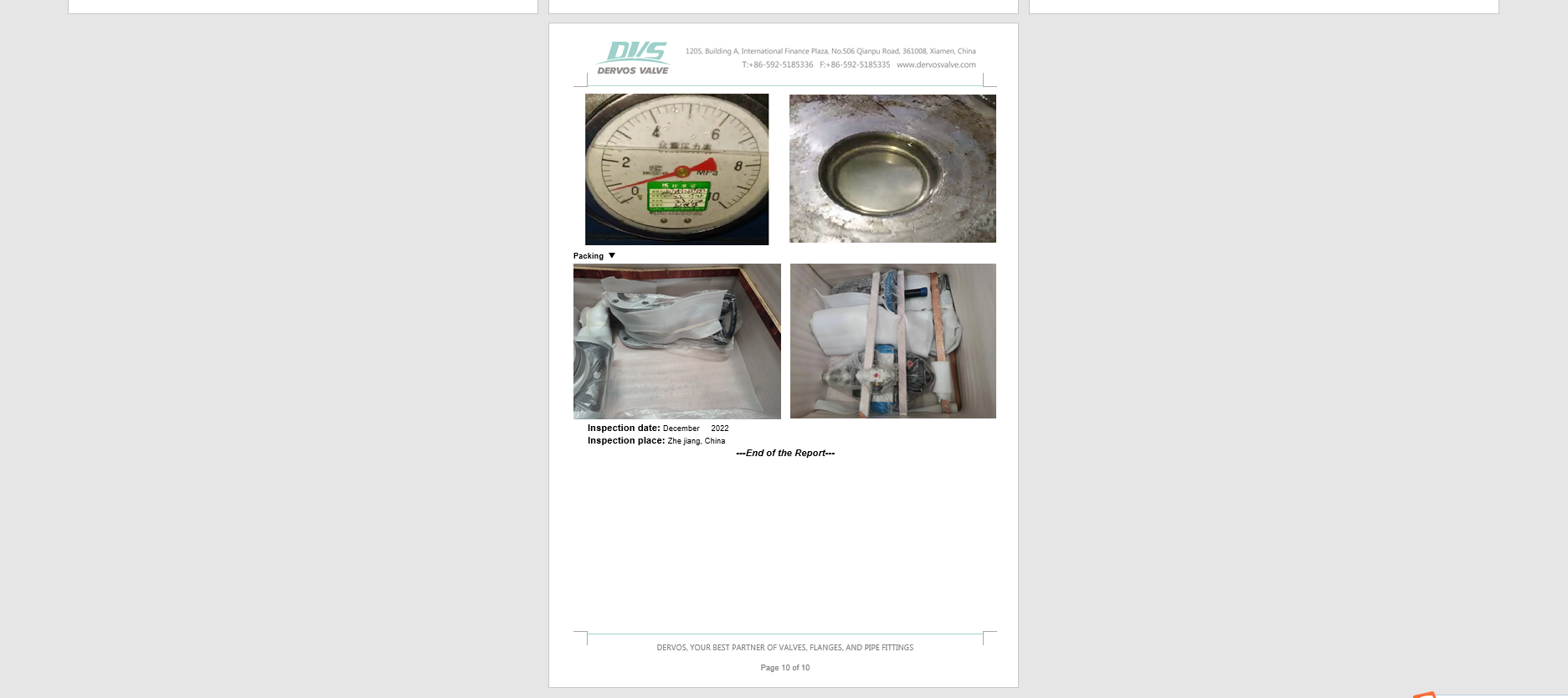

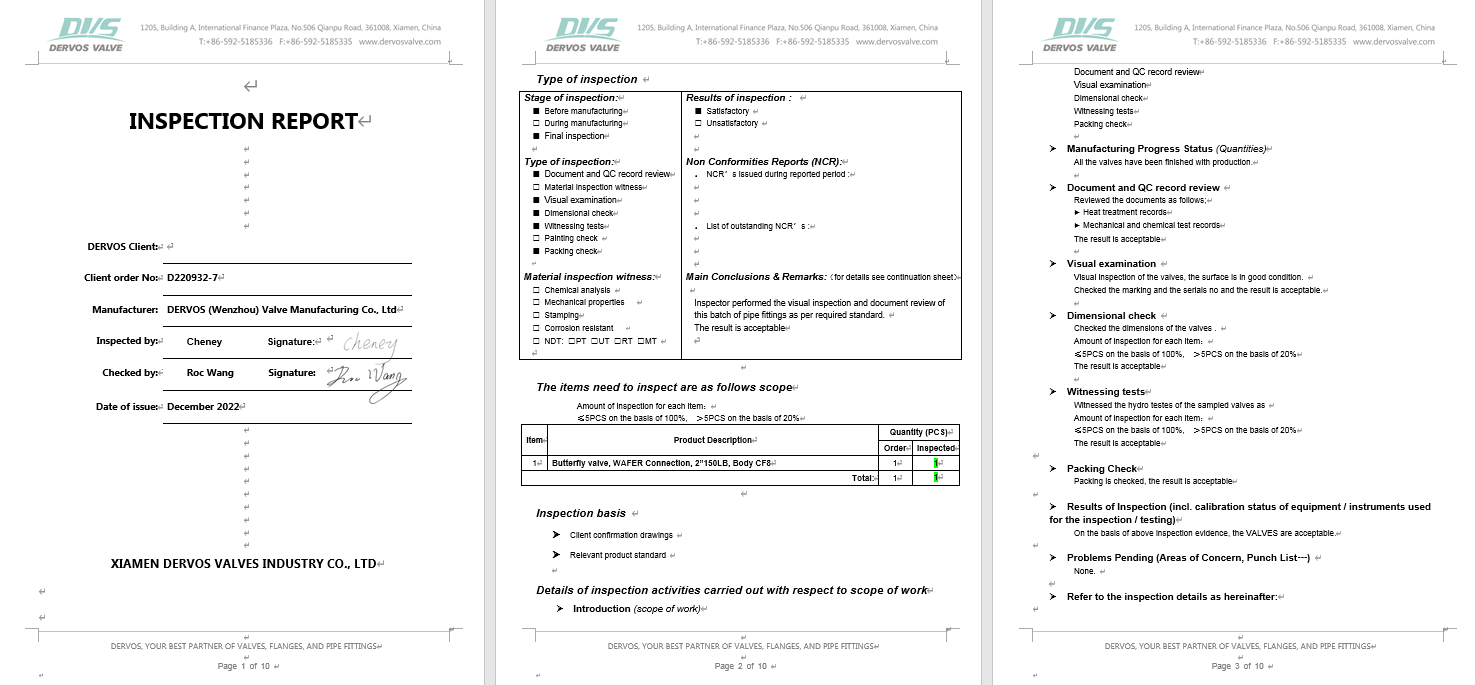

Inspection report
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
