Payment:
30% T/T When Order, 70% T/T Before ShipmentProduct Origin:
ChinaColor:
CustomizationShipping Port:
Shanghai ChinaLead Time:
35~60 days Ex Works After Order ConfirmationMaterial:
GGG50Method of Operation:

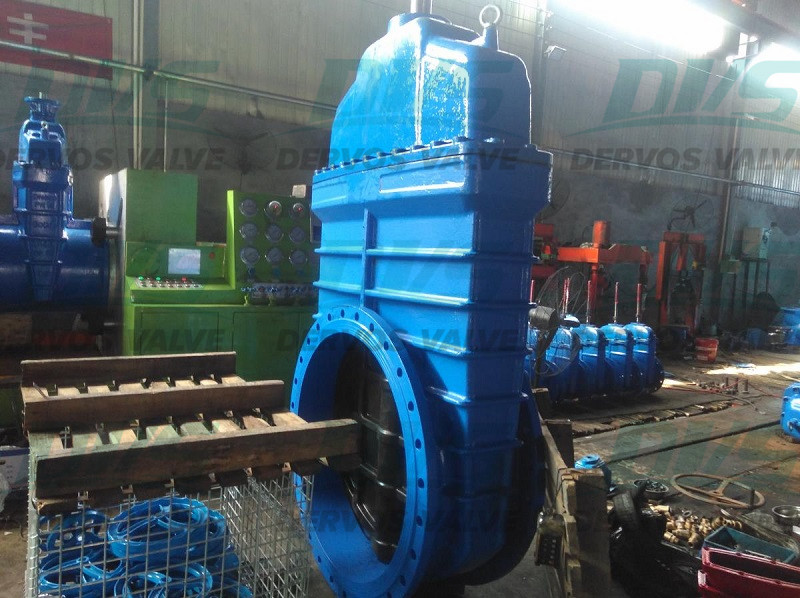

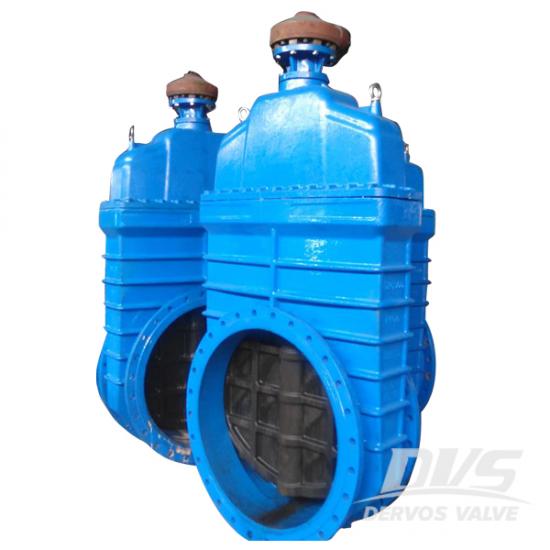

GearboxResilient gate valve F4, GGG50 Body Bonnet, GGG50 Disc, SS410 Stem, EPDM Seat, Brass or Bronze Stem Nut Gearbox Operation Raised Face DN1000 PN10 DIN 3352 Design Standard, Face to face DIN 3202 F4, DIN 2532 Flanged end, PN10 Working Pressure,non-rising stem
Quick Detail
|
Type |
Resilient GateValve |
|
Size |
DN1000 |
|
Design Pressure |
PN10 |
|
Construction |
BB, Non rising Stem |
|
ConnectionType |
RF |
|
OperationType |
Gearbox |
|
Body Material |
GGG50 |
|
WedgeMaterial |
GGG50 |
|
Stem Material |
SS410 |
|
Design Code |
DIN 3352 |
|
Face to Face Dimension |
DIN 3202 F4 |
|
Origin |
China |
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
The DN80 PN16 cast iron gate valve has face to face dimension as per DIN3202 F4 or DIN3202 F5. This GG25 gate valve is designed with resilient seat, non rising stem, bb, RF flange, suitable for water treatment application. Quick Detail Type Gate Valve Nominal Diameter DN 80 Nominal Pressure PN 16 ConstructionType Non-rising stem, Bolted Bonnet, Resilient Seat ConnectionType Flanged OperationType Handwheel Operation Body Material Cast Iron GG25 TrimMaterial Cast Iron Wedge, SS420 Stem, EPDM Seat Design Code DIN 3352 End to End Code DIN 3202 Flange Dimesion DIN 2501 Medium Water Origin China Design Feature 1.Resilient seat for good sealing performance 2.Low flow resistance and small pressure drop 3.Non-rising stem for installation space is limited 4.No limitation for flow direction of medium 5.Epoxy painting available for internal and external part of the valve for anti corrosive function Company Brief Introduction Specializing in valve industry over 10 years, Dervos becomes the leading vendor of gate, globe, check, ball, butterfly, plug valves and strainers. We serve oil and gas user such as LUKOIL, MOL, YPF with local partners. Dervos show its advantages in: 1. Our partnerships with tens of stable suppliers allow us to provide customers with a wide range of high-quality products at a competitive price. 2. Each order is under strict quality control with inspection reports before delivery. 3. We value delivery time as much as our customers do. With the powerful purchasing system, we follow each order closely to secure on-time delivery. 4. One-stop solutions will be offered in a timely manner

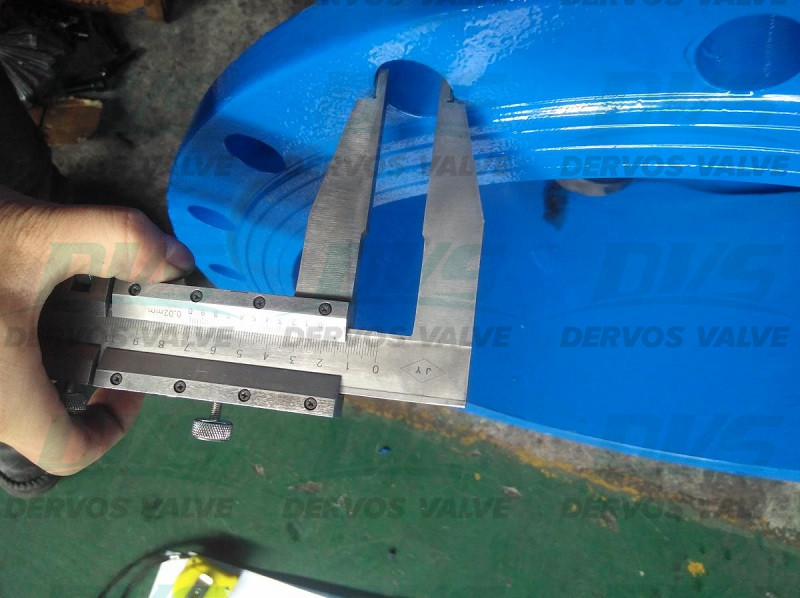

The ductile iron gate valve has GGG50 body material and EPDM soft seat. The valve is designed with non-rising stem, RF connection and manual operation, used in fire water. Quick Detail Type Gate Valve Size DN300, DN400 Design Pressure PN10 Construction Non-rising Stem, Soft Seat ConnectionType Flange OperationType Handwheel Operation Body Material GGG50 TrimMaterial Stem 2Cr13, EPDM Seat Medium Water Origin China Hydrostatic Pressure Test Dimension Checking Packing
The gate valve is made of ductile iron GGG50 . The valves disc is rubber-packed to get excellent sealing effect by the rubber's resilient deformation. Non-rising resilient seated gate valves solve the problem in general gate valves such as leakage, rusting etc. And it also saves space.
DN800 PN10 gate valve is made according to DIN standard. The valve body is made of GGG50. It has the structural characteristics of F4 drinking water soft gate. Its connection mode is RF, and it has gear operation.
China Carbon Steel Ball Valve Provider Offers 3 Piece Position Type Ball Valve, ASTM A105N, Class 800, 1 Inch, Free Floating Ball, API 608, BS 5351.
2" 150LB ball valve is made according to ISO17292 standard. The valve body is made of B148 C95400. It has the structural characteristics of full flow, floating ball, anti-fire, anti-static and anti-flying valve stem. Its operation mode is lever and connection mode is RF.
The swing check valve is made of 1.0619, a kind of carbon steel, as per DIN standard.The check valve is DN80 and PN40, or 3 inch and 300LB. And the valve is capable in working temperature between -19 to 425 degree Celsius.
The 16 inch cast steel gate valve with gearbox and 600LB RF flange is designed as per API 600. The bolted bonnet gate valve features in rising stem, resilient wedge and metal seat. Quick Detail Type Gate Valve Size 16" Pressure Class600 Construction Bolted Bonnet, Rising Stem, OS&Y, Flexible Wedge, Metal Seat Connection RF Flange Operation Gearbox Design Code API 600 Face to Face ASME B16.10 Flange End ASME B16.5 Pressure & Temp ASME B16.34 Test & Inspection API 598 Body Material A216 WCB TrimMaterial Trim 5 Temperature Range -29℃~+425℃ Medium Water, Oil and Gas Origin China Dimension & Material Class 600 NPS in 2 2 1/2 3 4 6 8 10 12 14 16 18 20 24 DN mm 50 65 80 100 150 200 250 300 350 400 450 500 600 L-L1 (RF-BW) in 11.5 13 14 17 22 26 31 33 35 39 43 47 55 mm 292 330 356 432 559 660 787 838 889 991 1092 1194 1397 L2 (RTJ) in 11.625 13.125 14.125 17.125 22.125 26.125 31.125 33.125 35.125 39.125 43.125 47.25 55.375 mm 295 333 359 435 562 664 791 841 892 994 1095 1200 1407 H (OPEN) in 18.625 21.75 23.375 28 1/16 38 3/16 44 3/16 52.375 59 13/16 68.125 72.25 90.125 98 13/16 119 mm 474 553 593 713 970 1122 1330 1519 1730 1835 2290 2510 3022 W in 9.875 9.875 11 13/16 13.75 19 11/16 22 1/16 28.375 24 24 24 24 30 30 mm 250 250 300 350 500 560 720 610* 610* 610* 610* 760* 760* WT (kg) RF 41 58 88 131 253 413 623 784 1288 1820 2150 2540 4080 BW 35 50 68 104 208 328 496 637 1120 1448 1828 2201 3360 *Manual gear operator is recommended No Part Name Carbon steel to ASTM Alloy steel to ASTM Stainless steel to ASTM WCB LCB WC6 WC9 C5 CF8 CF8M CF3 CF3M 1 Body A216 WCB A350 LCB A217 WC6 A217 WC9 A217 C5 A351 CF8 A351 CF8M A351 CF3 A351 CF3M 2 Seat Ring A105 A350 LF2 A182 F11 A182 F22 A182 F5 A182 F304 A182 F316 A182 F304L A182 F316L 3 Wedge A216 WCB A350 LCB A217 WC6 A217 WC9 A217 C5 A351 CF8 A351 CF8M A351 CF3 A351 CF3M 4 Stem A182 F6 A182 F6 A182 F304 A182 F304 A182 F316 A182 F304L A182 F316L 5 Bonnet nut A194 2H A194 4 A194 7 A194 8 6 Bonnet bolt A193 B7 A320 L7 A193 B16 A193 B8 7 Gasket SS Spiral Wound graphite or SS Spiral Wound PTFE 8 Bonnet A216 WCB A352 LCB A217 WC6 A217 WC9 A217 C5 A351 CF8 A351 CF8M A351 CF3 A351 CF3M 9 Backseat bushing A182 F6 A182 F6 A182 F304 A182 F304 A182 F316 A182 F304L A182 F316L 10 Stem packing Graphite or PTFE 11 Lantern A182 F6 A182 F6 A182 F304 A182 F304 A182 F304 A182 F304 A182 F316 A182 F304L A182 F316L 12 Gland Nut A194 2H A194 8 13 Gland Eyebolt A193 B7 A193 B8 14 PIN Carbon steel or Stainless Steel 15 Gland A182 F6 A182 F304 A182 F316 A182 F304L A182 F316L 16 Gland Flange A216 WCB A351 CF8 17 Stem Nut A439 D2 or B148-952A 18 Nipple Carbon steel or Stainless Steel 19 Retaining Nut Carbon steel 20 Hand Wheel Ductile Iron or carbon steel 21 Name Plate Stainless steel or Aluminum 22 H.W.Lock Nut Carbon steel
The DN50 PN160 spring loaded lift check valve, made of Cast Steel, is powered by flow and differential pressure with assistance from spring pressure. And it requests no human intervention is required to function, easy to use.
6" 150LB ball valve is made according to API 6D standard. The valve body is made of A995-4A. It has the structural characteristics of Split type, side mounted, floating ball, full bore, anti-fire, anti-static, anti-flying valve stem, NACE MR0175 and bidirectional. Its connection mode is RF. And it has lever with locking device operation mode.
3" 1500LB strainer is made according to ASME B16.34 standard. The valve body is made of ASTM A216 WCB. It has the structural characteristics of plug with DN20 blind flange. Its connection mode is RTJ.
The gate valve, made according to API 600, is made of CF8, one kind of cast steel. The 4 inch valve is equipped a handwheel, outside yoke, bolted bonnet and extended bonnet. All the accessories are traceable.
