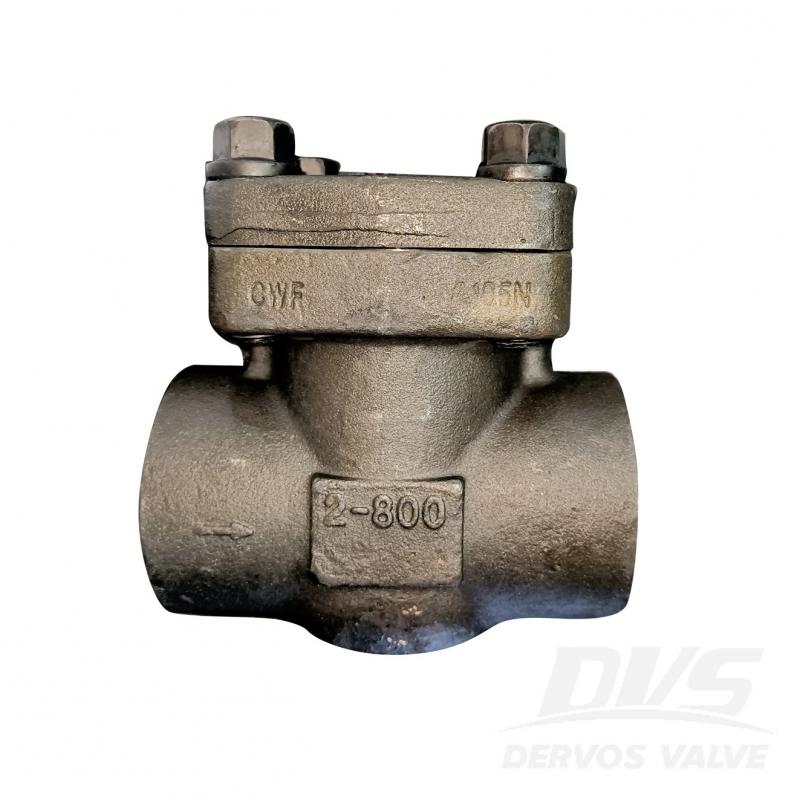

2" 800LB swing check valve is made according to API 602 standard. The valve body is made of ASTM A105N. It has the structural characteristics of bolted cover, swing type. Its connection mode is NPT.
Payment:
30% when order confirmed, 70% before shipmentProduct Origin:
ChinaColor:
CustomizationShipping Port:
Shanghai, ChinaLead Time:
30~60 days Ex Works after order confirmationMaterial:
ASTM A105NProduct Description
|
Type |
Swing Check Valve |
|
Size |
2'' |
|
Pressure |
800LB |
|
Connection |
NPT |
|
Body Material |
ASTM A105N |
|
Design Norm |
API 602 |
|
Face to Face Dimensions |
MFG'S |
|
End Connection |
ASME B1.20.1 |
|
Pressure-temperature |
ASME B16.34 |
|
Test & Inspection Code |
API 598 |
|
Temperature |
-29 ~ 300°C |
|
Applicable Medium |
Water, Oil and Gas |
Features
1. It can be installed horizontally or vertically (with media flowing from bottom to top), with strong adaptability.;
2. Reasonable design can effectively reduce the occurrence of water hammer and protect the safety of pipeline systems.

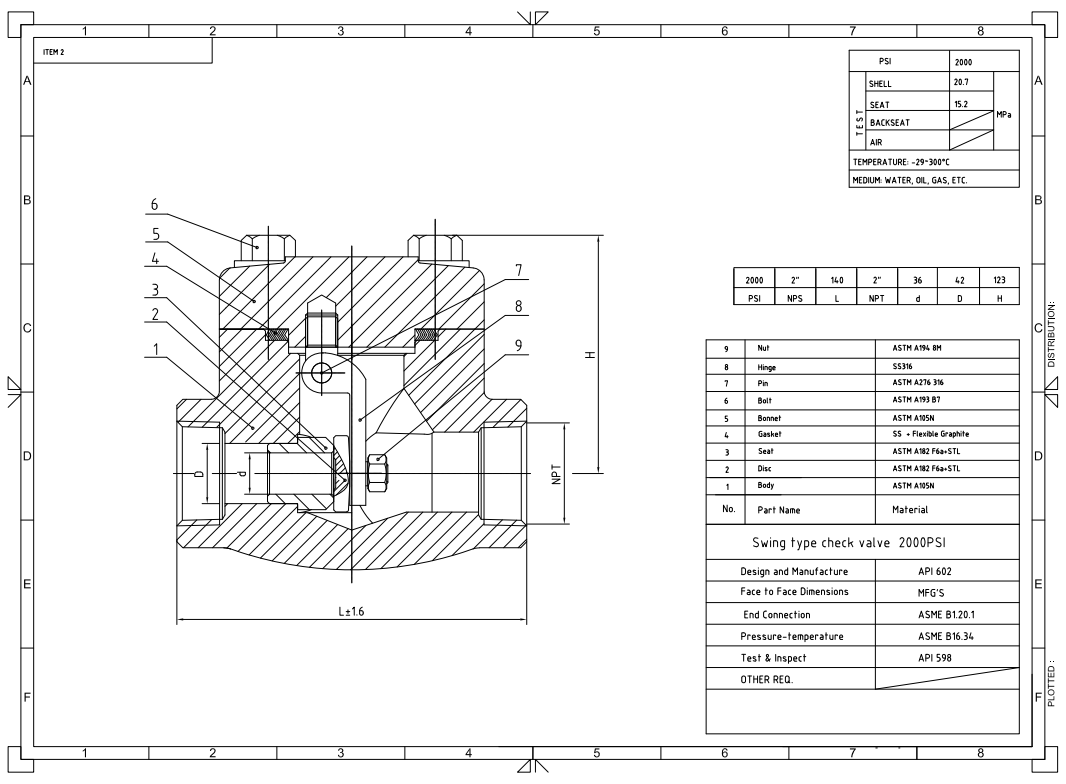

Technical Drawing

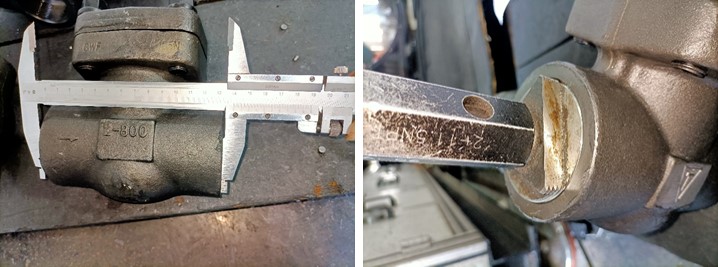

Dimension Checking

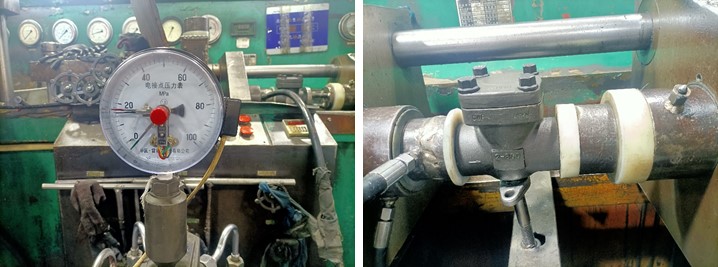

Pressure Testing

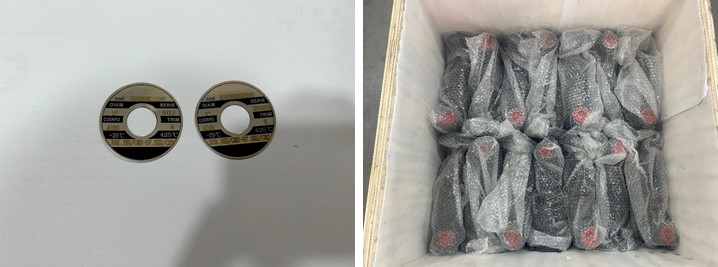

Nameplate & Packing

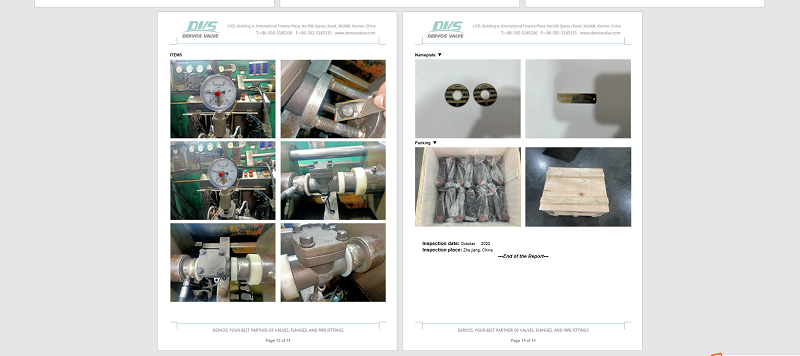

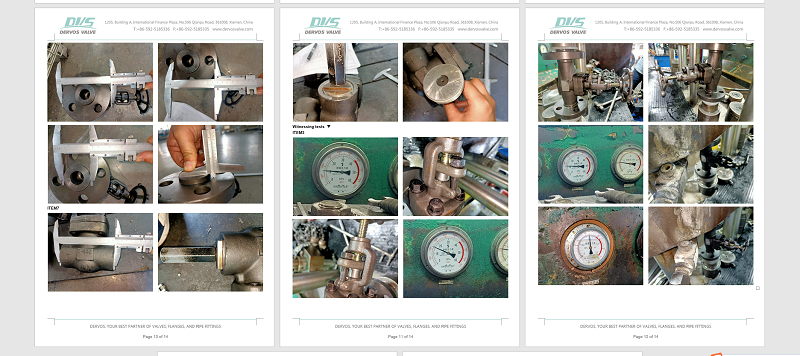

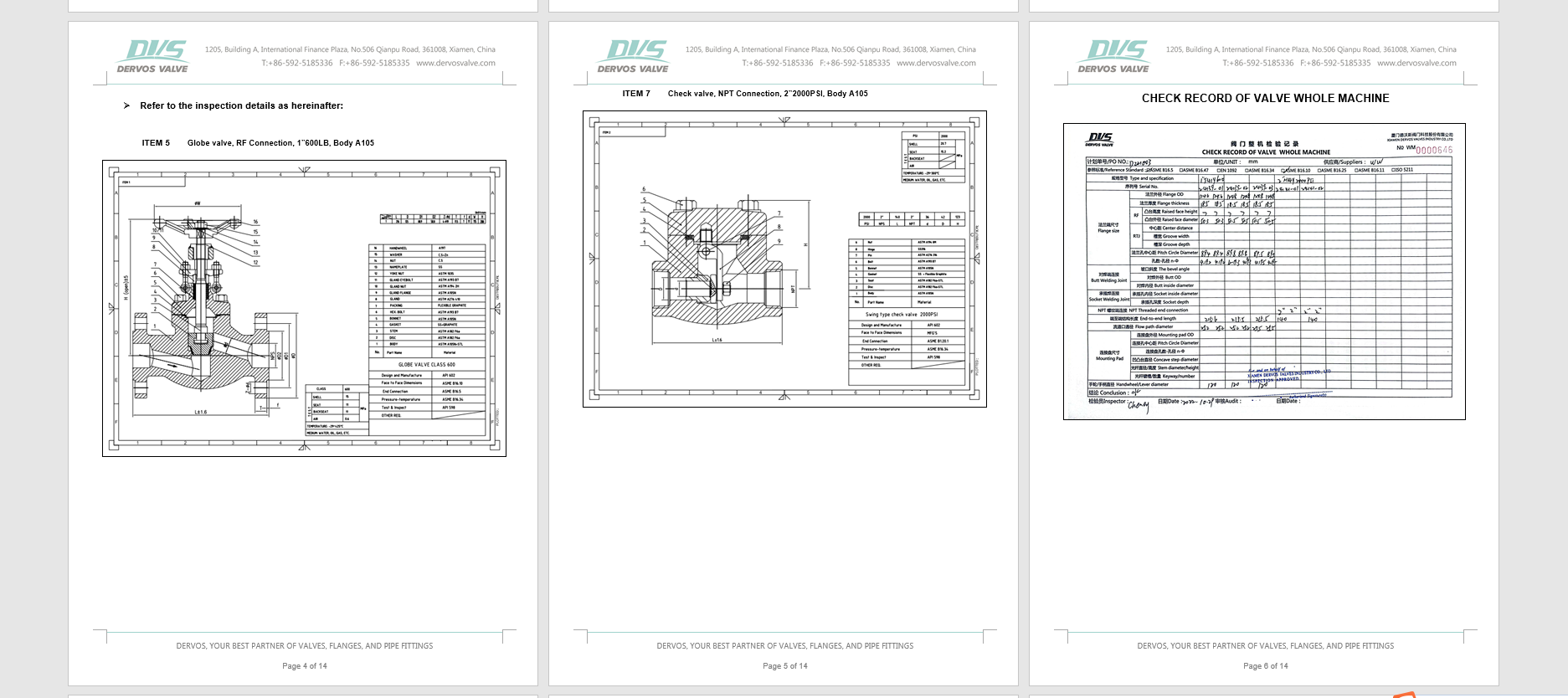

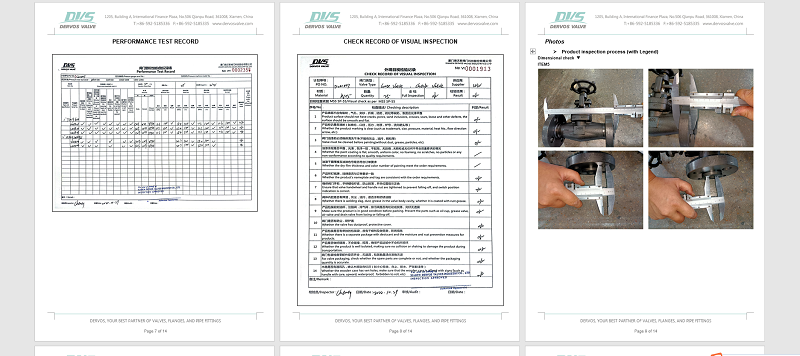

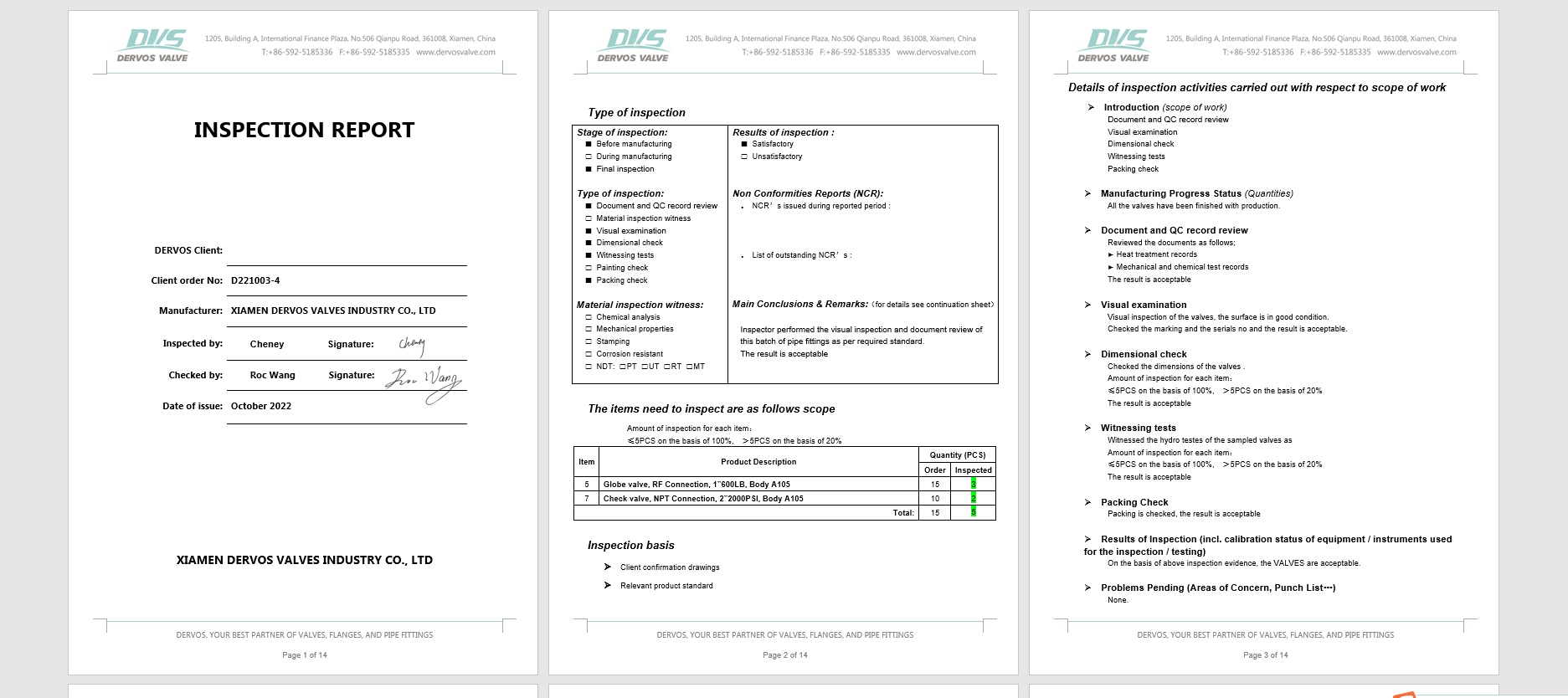

Inspection report
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
