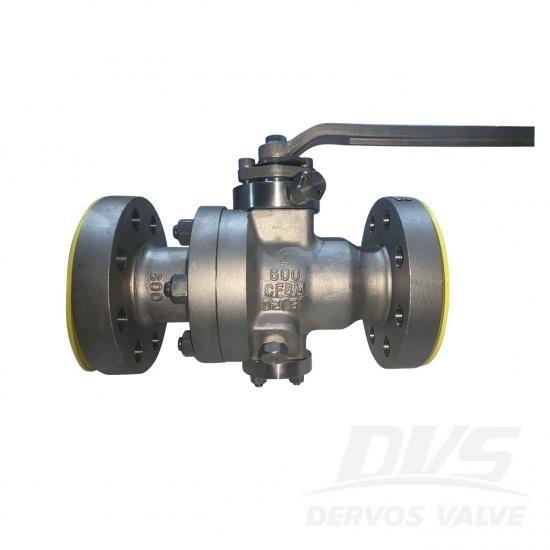

2" 600LB ball valve is made according to API 6D standard. The valve body is made of CF8M. It has the structural characteristics of split type, fixed ball, full bore, fire protection design. Its connection mode is RF. And it has lever operation mode.
Payment:
30% when order confirmed, 70% before shipmentProduct Origin:
ChinaColor:
CustomizationShipping Port:
Shanghai, ChinaLead Time:
30~60 days Ex Works after order confirmationMaterial:
ASTM A351 CF8MMethod of Operation:
LeverProduct Description
|
Type |
Ball Valve |
|
Size |
2" |
|
Pressure |
600LB |
|
Connection |
RF |
|
Operation |
Lever |
|
Body Material |
ASTM A351 CF8M |
|
Design Norm |
API 6D |
|
Pres. & Temp. |
ASME B16.34 |
|
Face to Face |
ASME B16.10 / API 6D |
|
End Conn. |
RF |
|
Pres. Test |
API 598 |
|
End Dime |
ASME B16.5 / B16.47A |
|
Temperature |
-20 ~ 120°C |
|
Applicable Medium |
Water, Oil and Gas |
Features
1. The fluid resistance is small, the structure is simple, the volume is small, and the weight is light;
2. It is easy to operate and can be opened and closed quickly. Only 90 ° rotation is required from full opening to full closing, which is convenient for remote control;
3. Easy maintenance, simple structure of ball valve, easy to remove and replace.

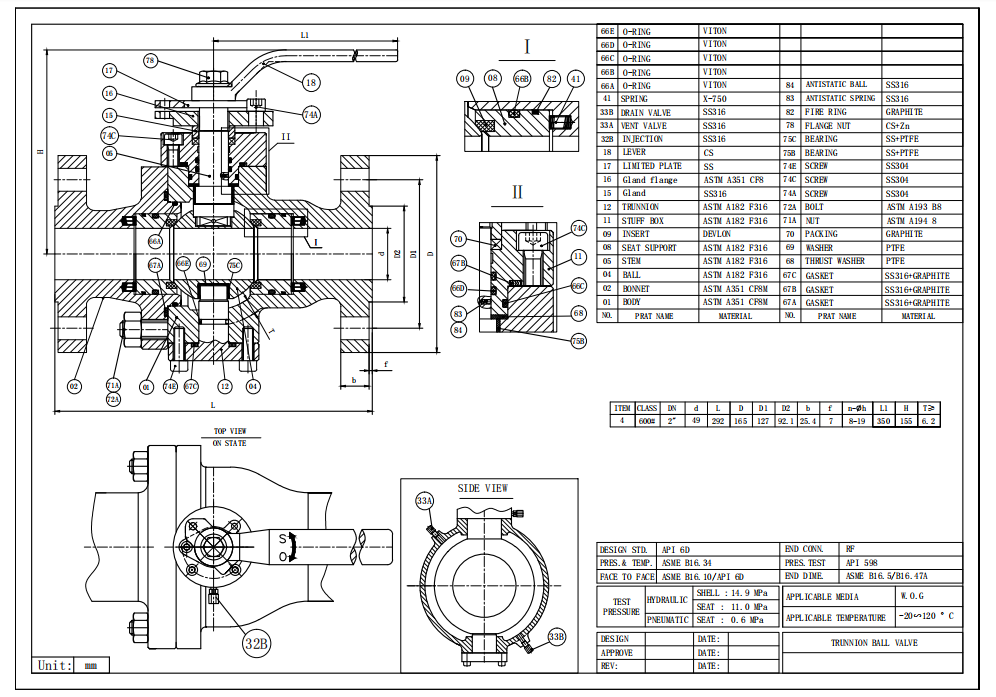

Technical Drawing

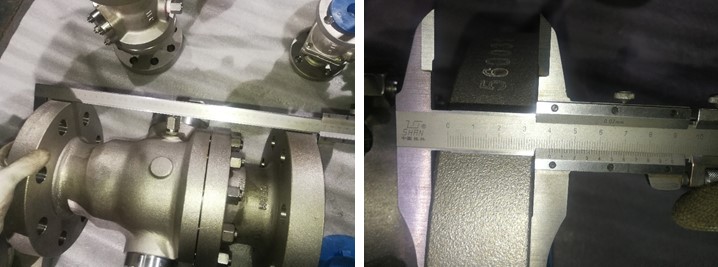

Dimension Checking

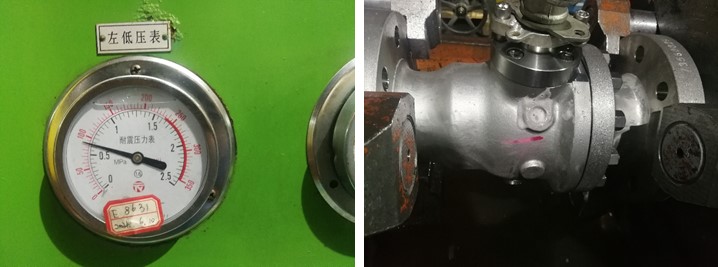

Pressure Testing

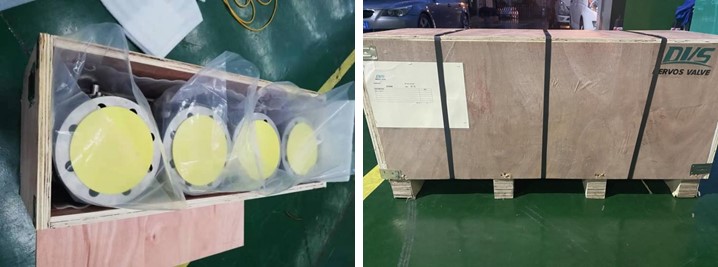

Packing

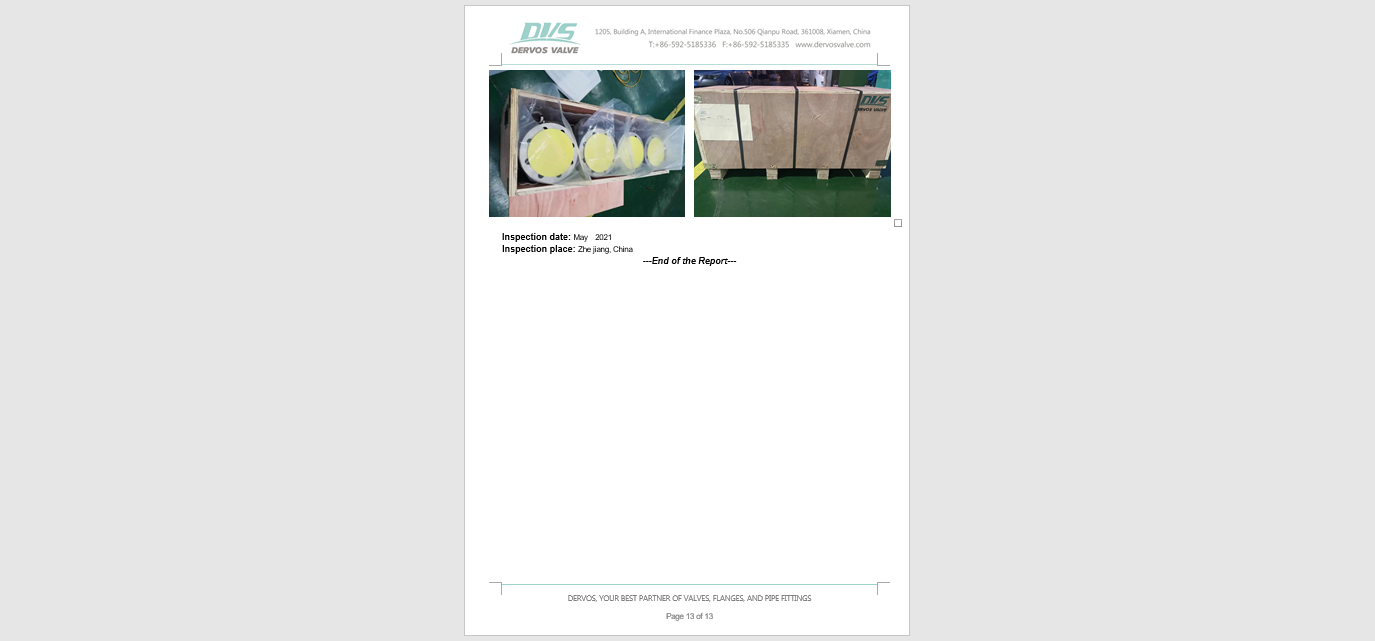

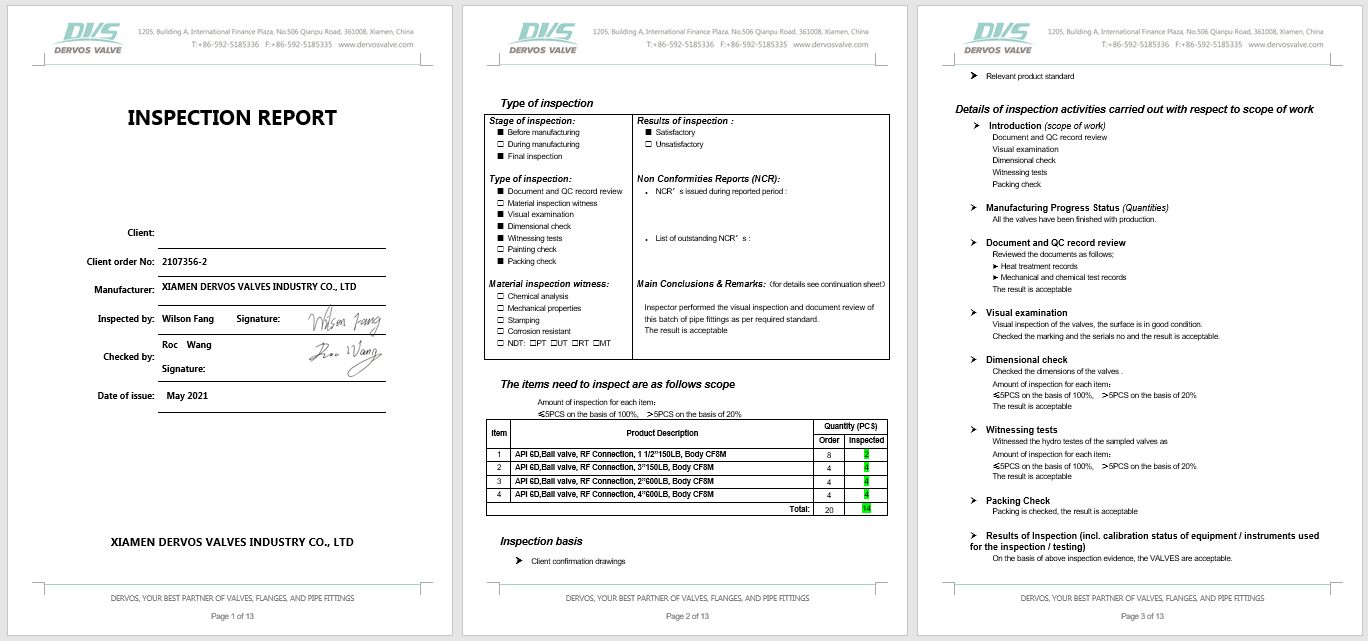

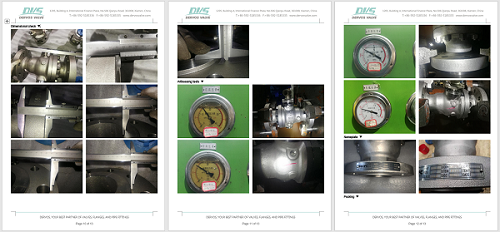

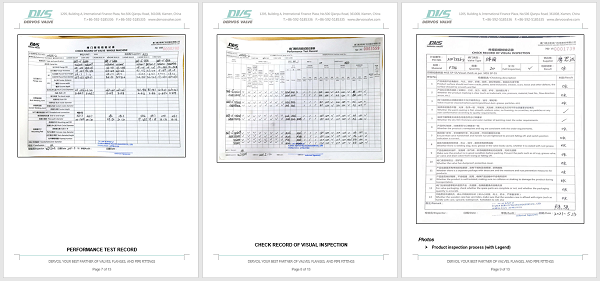

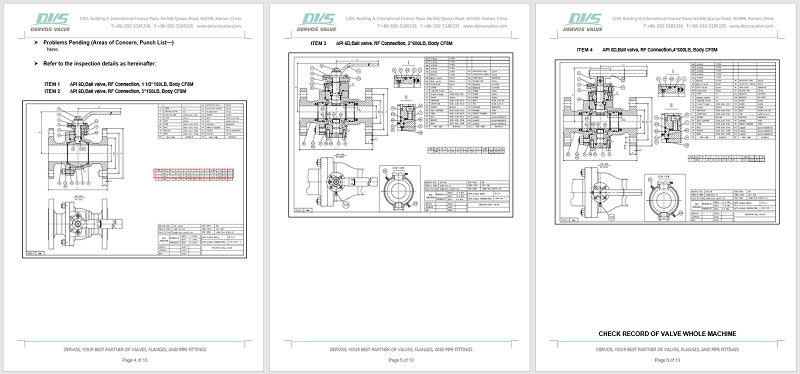

Inspection report
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
