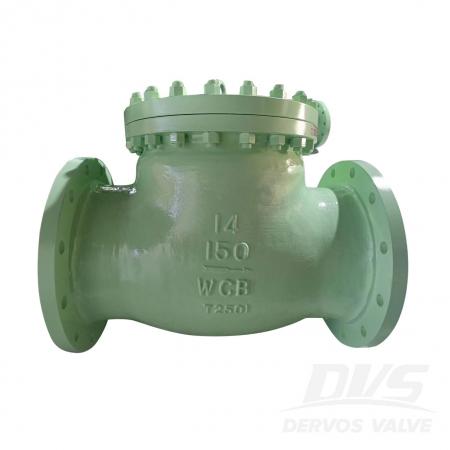

14" 150LBS swing check valve is made according to BS 1868 standard. The valve body is made of ASTM A216 WCB+STL. It has the structural characteristics of plug cover and swing type. Its connection mode is RF.
Payment:
30% when order confirmed, 70% before shipmentProduct Origin:
ChinaColor:
CustomizationShipping Port:
Shanghai, ChinaLead Time:
30~60 days Ex Works after order confirmationMaterial:
ASTM A216 WCB+STLProduct Description
|
Type |
Swing Check Valve |
|
Size |
14" |
|
Pressure |
150LBS |
|
Connection |
RF |
|
Body Material |
ASTM A216 WCB+STL |
|
Design Norm |
BS 1868 |
|
Face to Face Dimensions |
ASME B16.10 |
|
Ends Dimensions |
ASME B16.5 |
|
Test & Inspection Code |
API 598 |
|
Temperature |
-29 ~ 150°C |
|
Applicable Medium |
Water, Oil and Gas |
Features
1. The structure is sturdy and can withstand certain vibrations and impacts, suitable for use in working conditions with high vibrations or impacts;
2. Suitable for various media such as water, oil, gas, etc., widely used in industries such as water supply systems, petrochemicals, pharmaceuticals, etc.

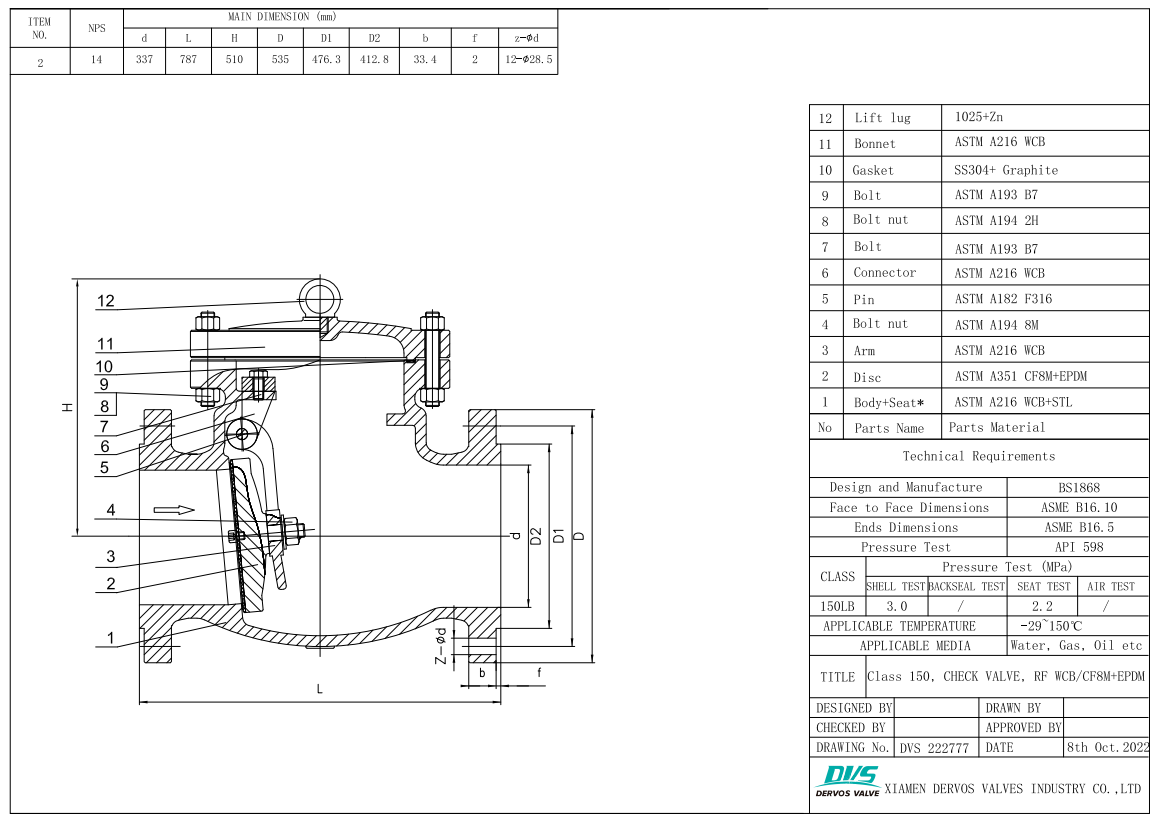

Technical Drawing

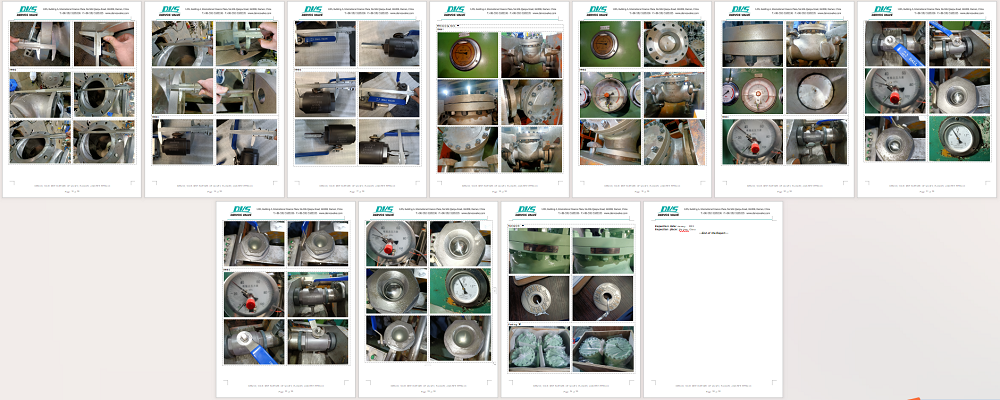

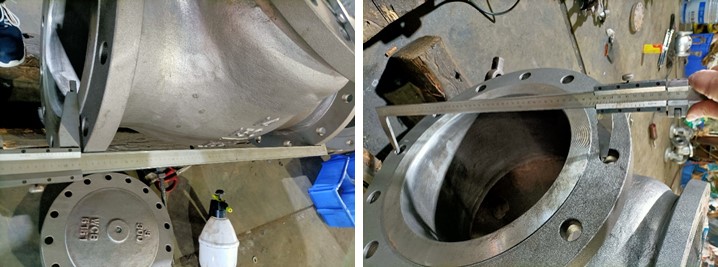

Dimension Checking

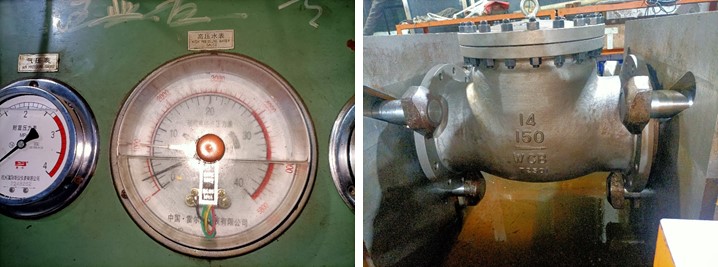

Pressure Testing

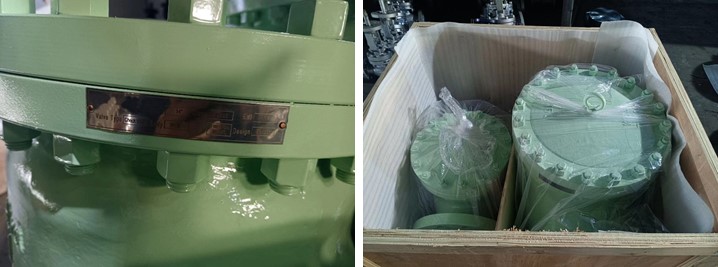

Nameplate & Packing

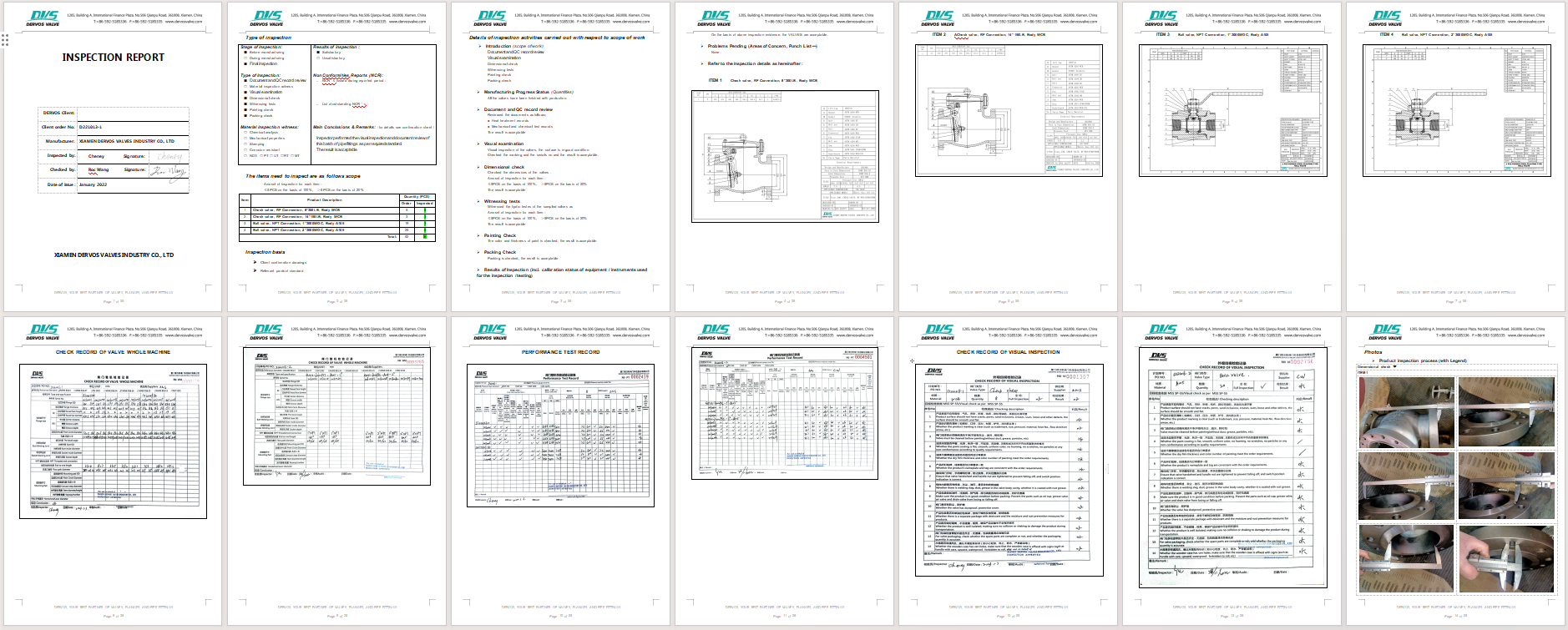

Inspection report
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
