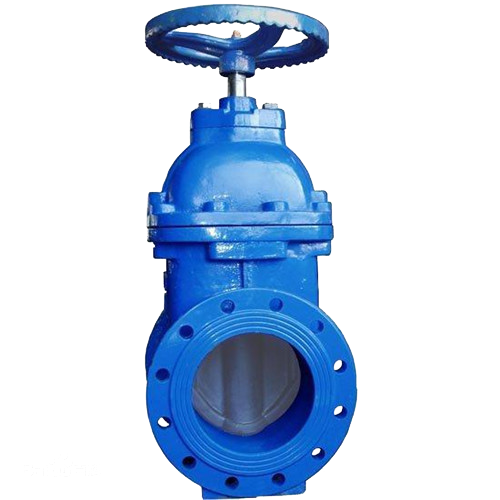

Resilient seated sealing gate valve utilizes the compensation effect of the elastic deformation of the overall rubber covering of the gate to achieve a good sealing effect, and overcomes the problems of poor sealing, water leakage and rust in general gate valves. Resilient seated sealing gate valve can be widely used in tap water, sewage, construction, petroleum, chemical industry, food, medicine, textile, electric power, shipbuilding, metallurgy, energy system and other working conditions, and it is used as a shut-off device on the fluid pipeline.

Features of Resilient Seated Sealing Gate Valve:

1. Flat-bottom valve seat, no dirt accumulation, more reliable sealing.

2. The wedge is covered with nitrile rubber as a whole, and the internal parts of the valve are made of corrosion-resistant stainless steel and copper alloy materials, which can be used in the sewage system and adapt to the harsh working environment.

3. Small size, light weight, easy to install and maintain.

4. The valve stem is sealed with three O-rings, which greatly reduces the friction resistance when switching, and the switch is light and water-proof.

5. The valve body is made of precision casting, and the precise geometric dimensions make the valve body tight without any finishing work.

6. The copper nut and the elastic wedge are embedded in the joint, so that the two are closely integrated into one body, and there is no loosening or damage caused by the vibration caused by the water flow.

7. The valve body is coated with powder epoxy resin, which can prevent corrosion and rust of the valve body and can be used in sewage system.

8. The inside of the valve body is coated with non-toxic epoxy resin, and the inner and outer surfaces of the valve are completely covered with rubber, which will not rust or corrode, and can be used for raw drinking.
