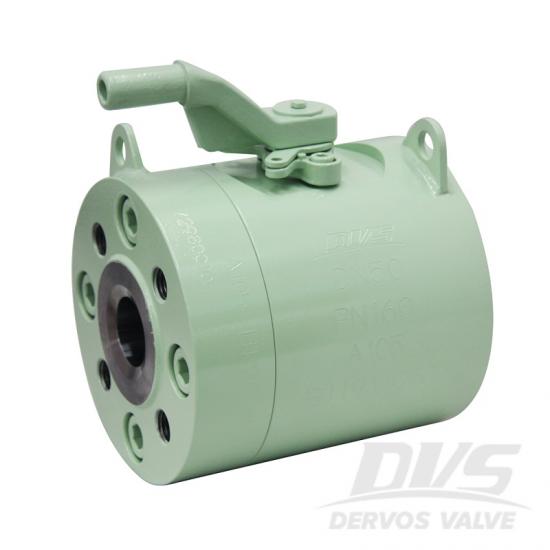

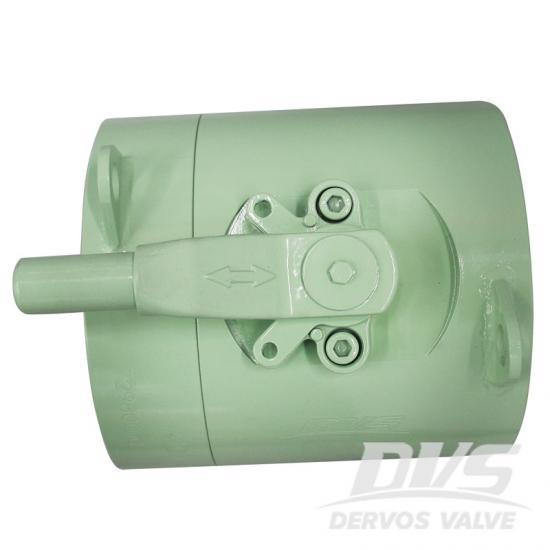

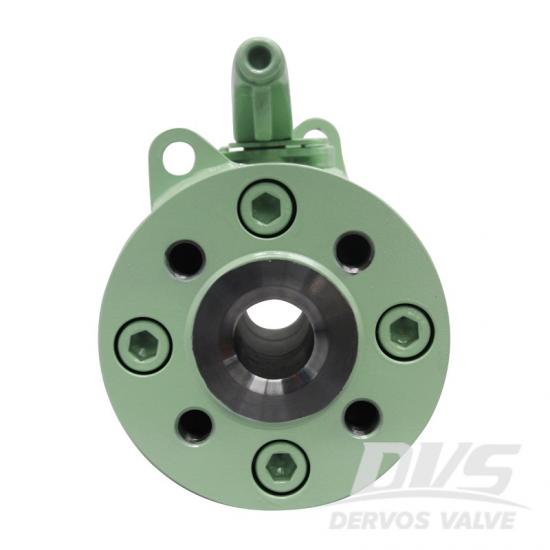

DN50 PN160 floating ball valve is made according to API6D standard. The valve body is made of A105. It has the structural characteristics of floating ball and structural length of 235mm. It has a lever operation mode and its connection mode is lens gasket.
Payment:
30% when order confirmed, 70% before shipmentProduct Origin:
ChinaColor:
CustomizationShipping Port:
Shanghai, ChinaLead Time:
30~60 days Ex Works after order confirmationMaterial:
A105Method of Operation:
Lever operationProduct Description
|
Type |
Floating Ball Valve |
|
Size |
DN50 |
|
Pressure |
PN160 |
|
Connection |
Lens gasket |
|
Operation |
Lever operation |
|
Body Material |
A105 |
|
Manufacture |
API 6D |
|
Test & Inspection Code |
API 6D |
|
Pressure / temperature |
EN1092 |
|
Flange |
EN1092-B1 / DIN 2696 |
|
Temperature |
-29 ~ 121°C |
|
Applicable Medium |
Water, Oil and Gas |
Features
1. The ball valve can be fully closed and opened by rotating 90°, and can be opened and closed quickly;
2. The ball valve has small flow resistance, low friction coefficient and wide application range.

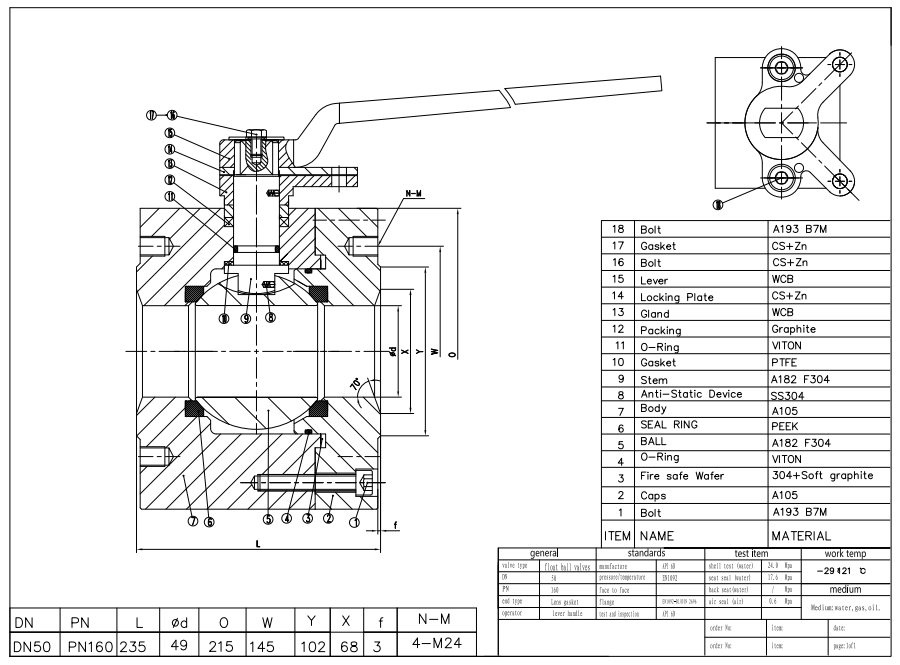

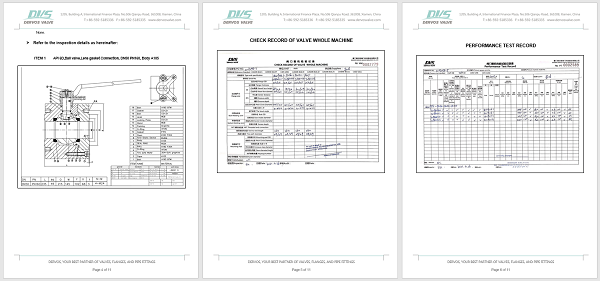

Technical Drawing

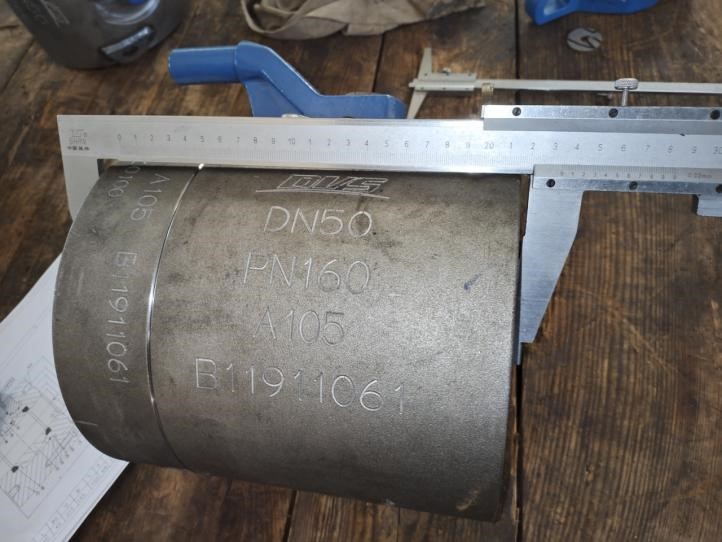

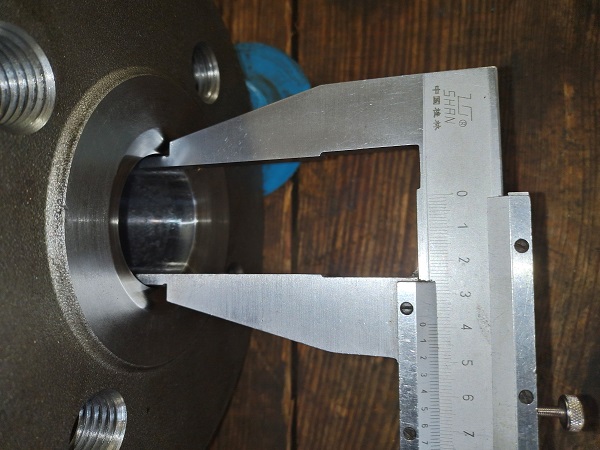

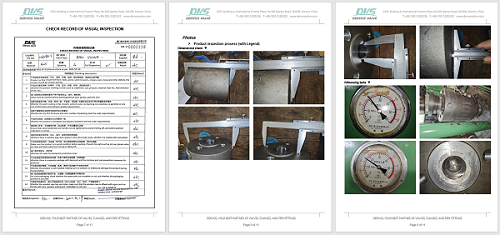

Dimension Checking

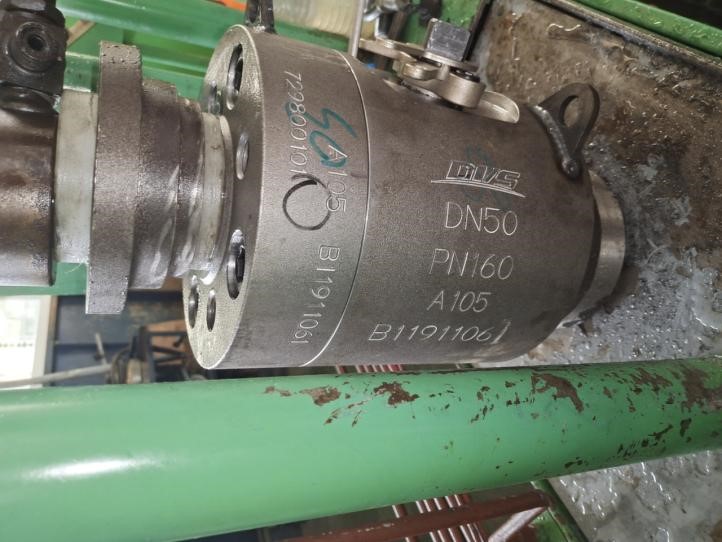

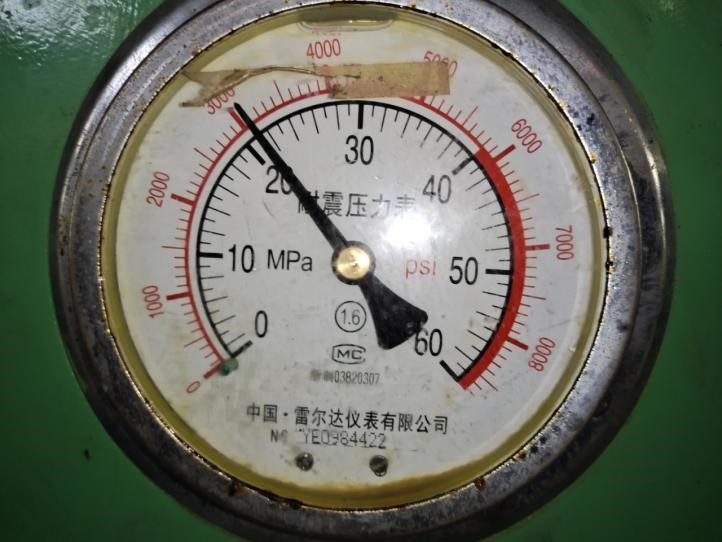

Pressure Testing

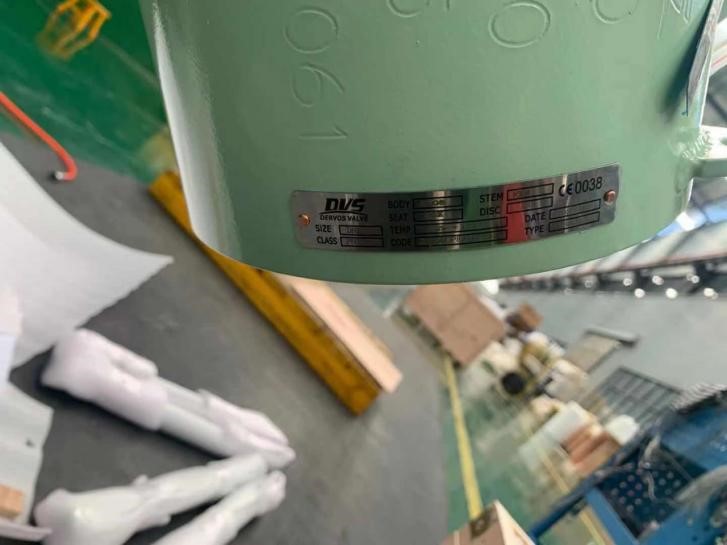

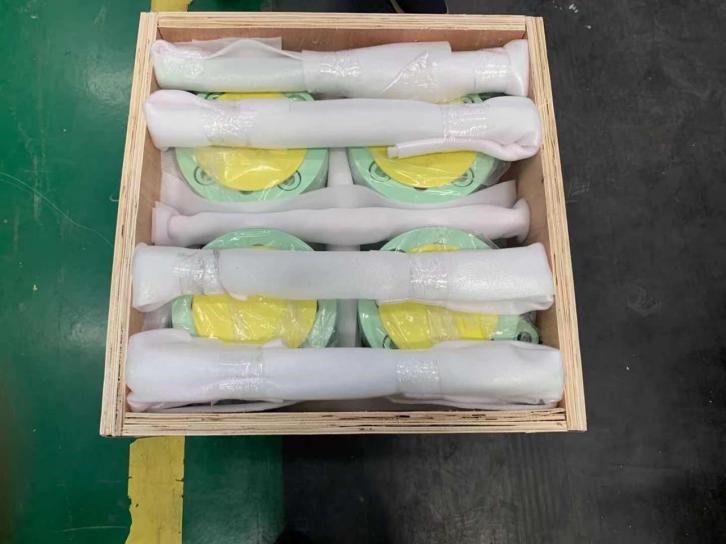

Nameplate & Packing

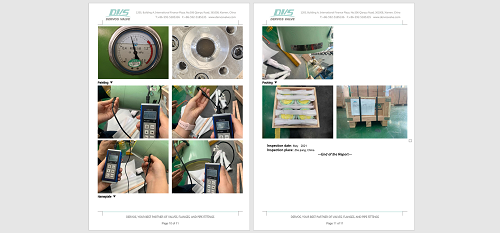

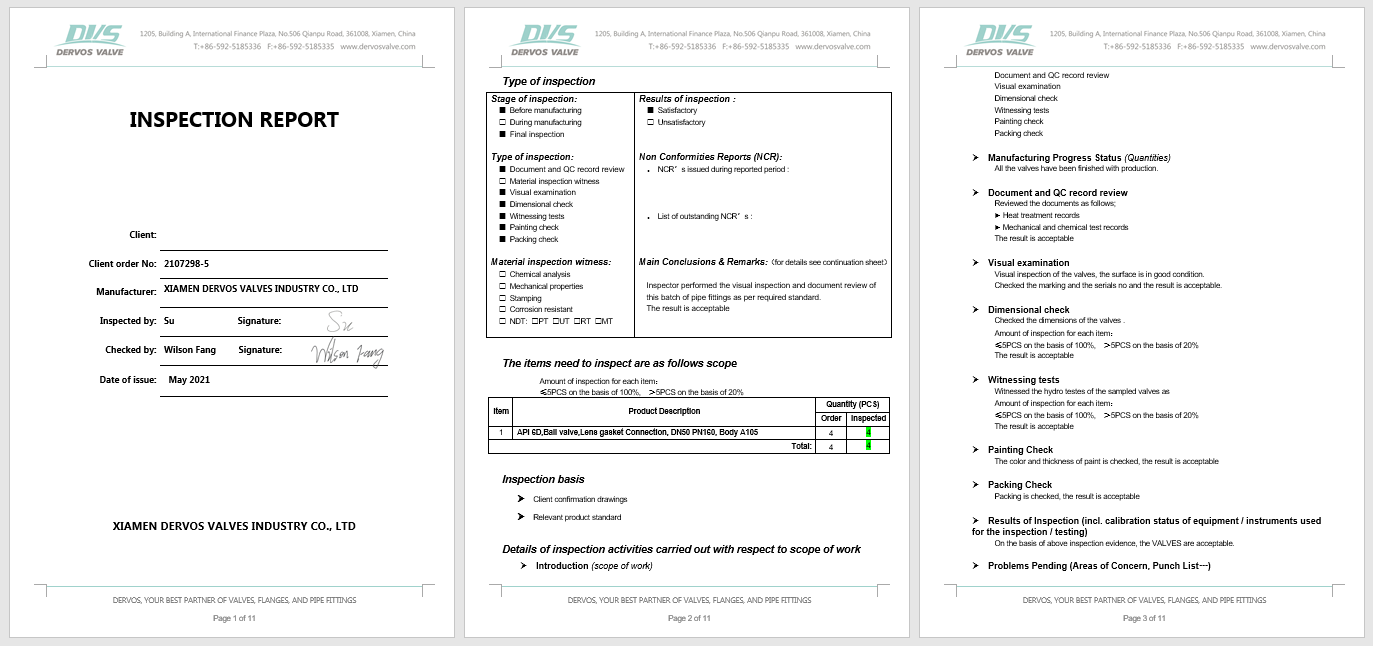

Inspection report
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
