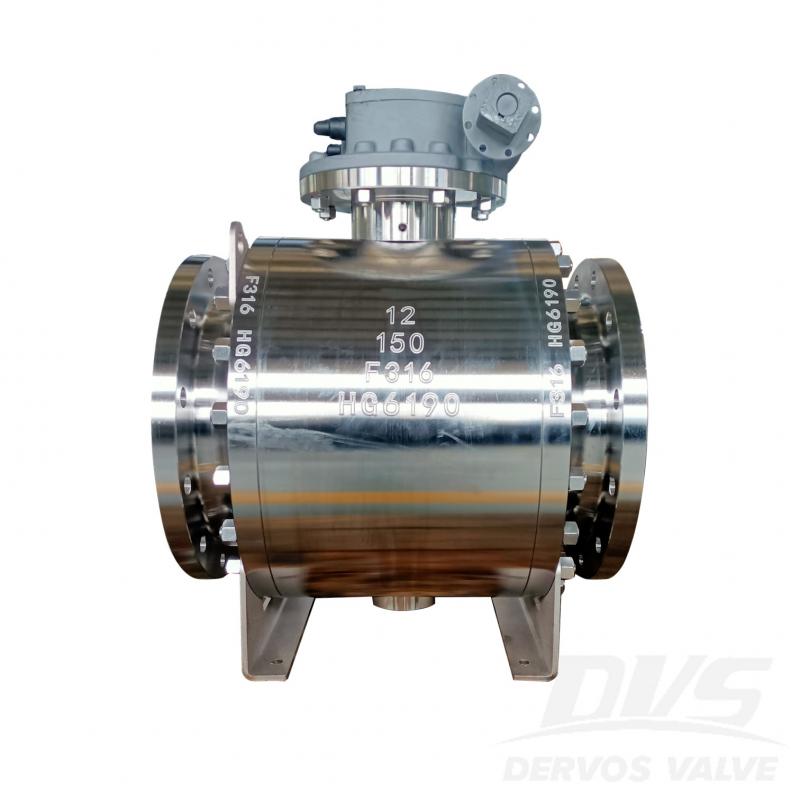

12" 150LBS trunnion mounted ball valve is made according to API 6D standard. The valve body is made of A182 F316. It has the structural characteristics of fixed ball, full bore, 3-piece, fire-resistant design in accordance with API6FA. Its connection mode is RF. And it has worm gear operation mode.
Payment:
30% when order confirmed, 70% before shipmentProduct Origin:
ChinaColor:
CustomizationShipping Port:
Shanghai, ChinaLead Time:
30~60 days Ex Works after order confirmationMaterial:
A182 F316Method of Operation:
Worm GearProduct Description
|
Type |
Trunnion Mounted Ball Valve |
|
Size |
12" |
|
Pressure |
150LBS |
|
Connection |
RF |
|
Operation |
Worm Gear |
|
Body Material |
A182 F316 |
|
Design Norm |
API 6D |
|
Pressure / Temperature |
ASME B16.34 |
|
Face to Face |
API 6D |
|
Flange |
ASME B16.5 |
|
Test & Inspection Code |
API 6D |
|
Temperature |
-46 ~ 100°C |
|
Applicable Medium |
Water, Oil and Gas |
Features
1. The fixed ball design reduces the wear of the valve seat and improves the service life of the ball valve;
2. Three piece fixed ball valves are usually designed for bi-directional sealing, which means that the valve can have good sealing performance in both directions and is suitable for bi-directional flow systems.

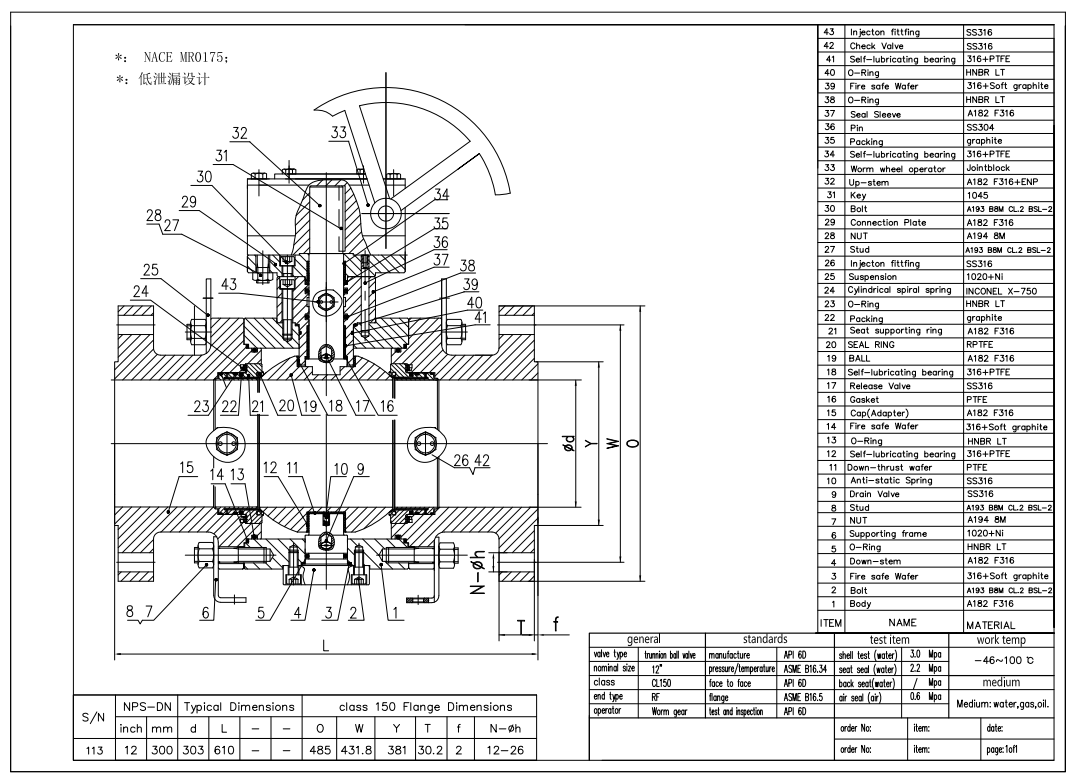

Technical Drawing

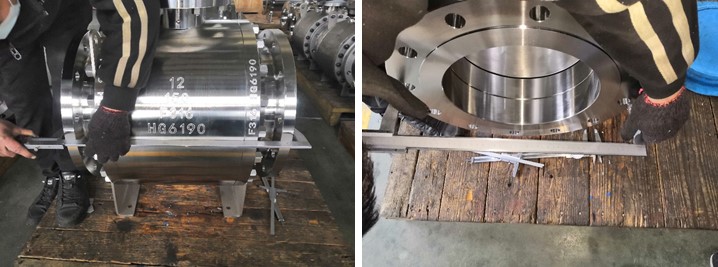

Dimension Checking

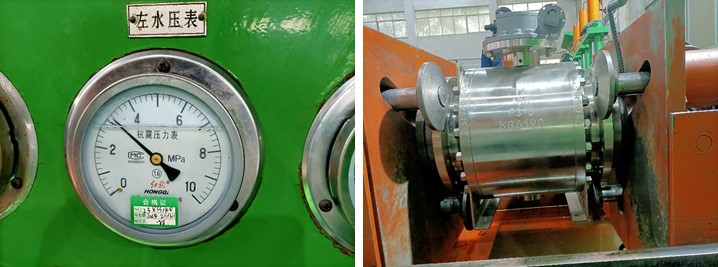

Pressure Testing

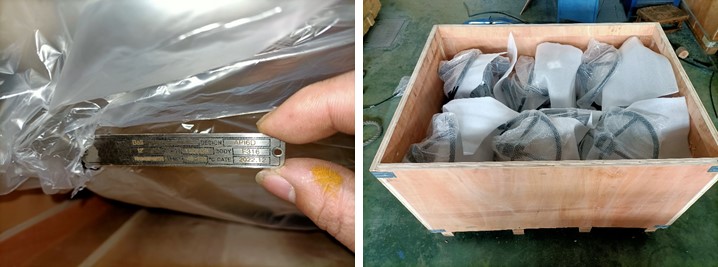

Nameplate & Packing

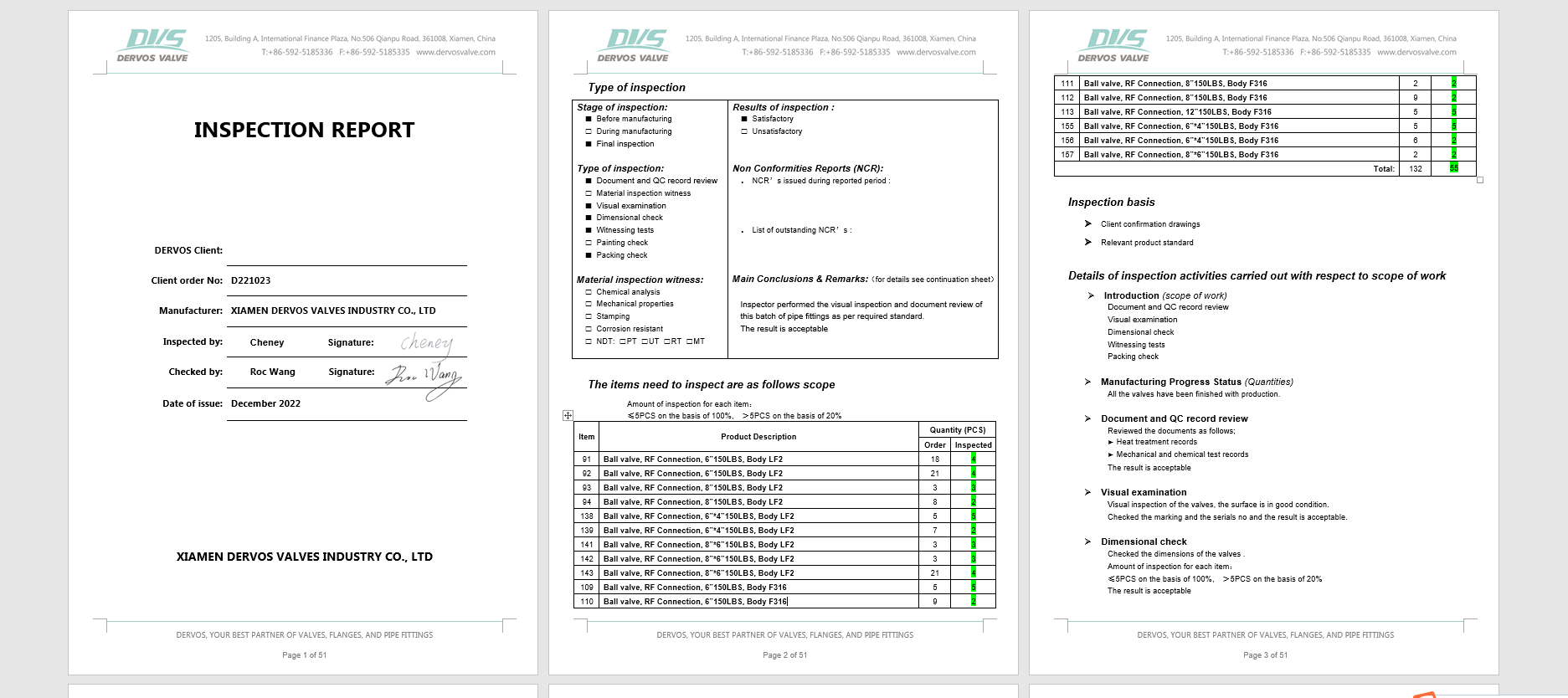

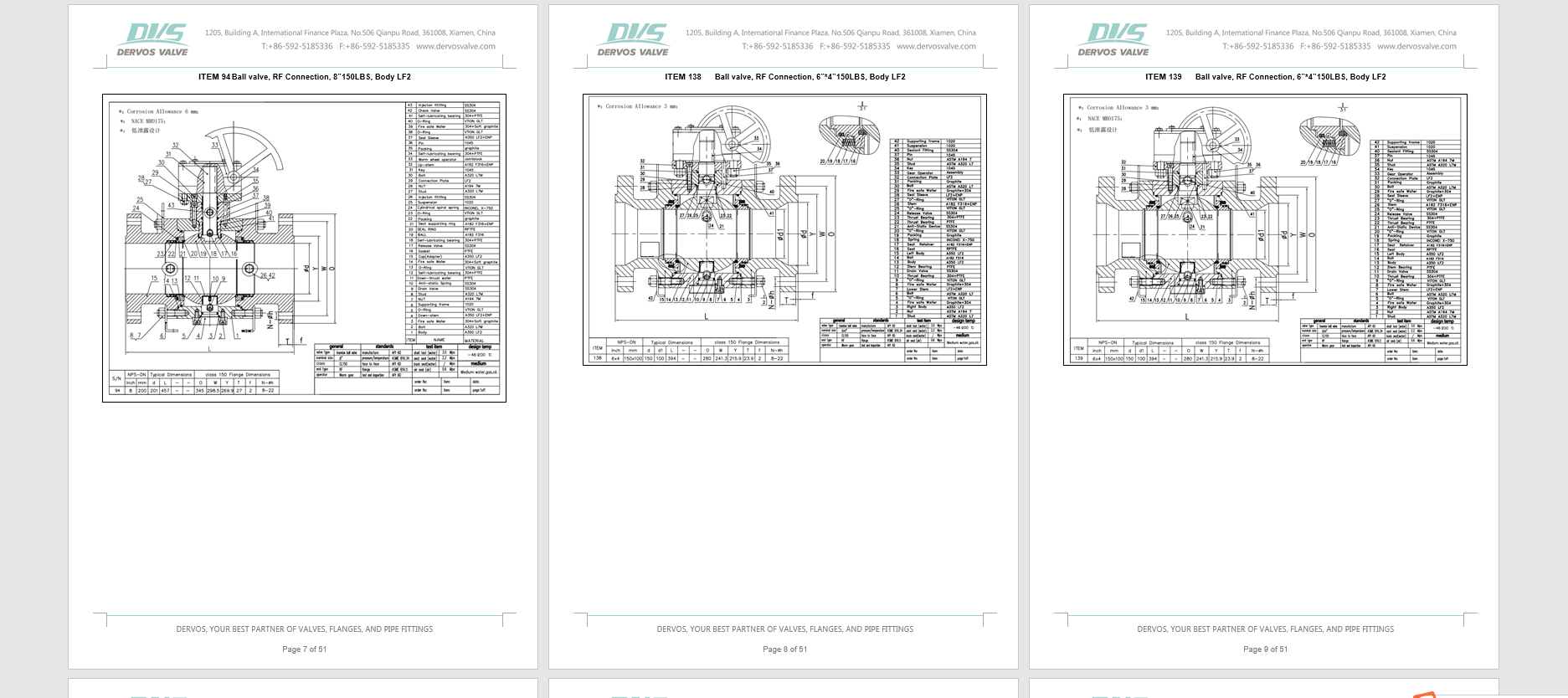

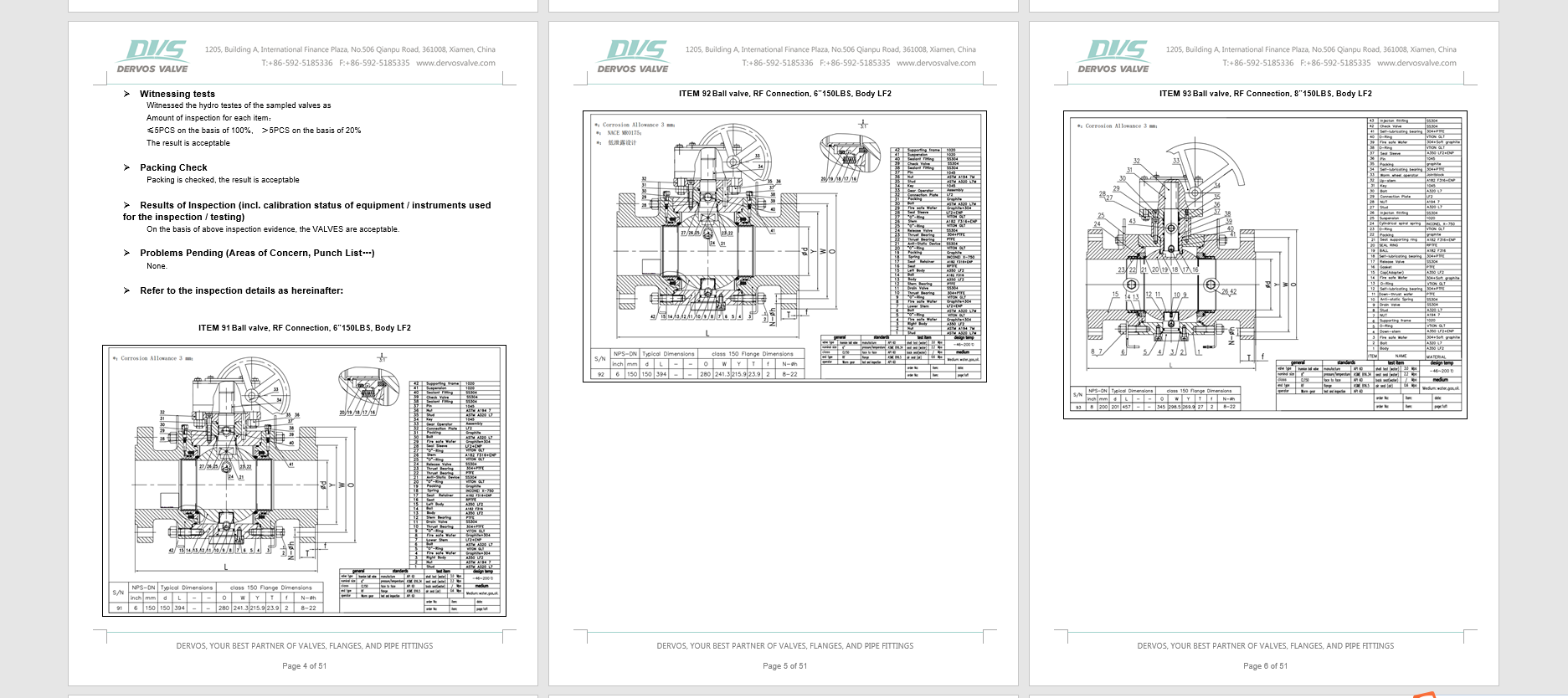

Inspection report
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
