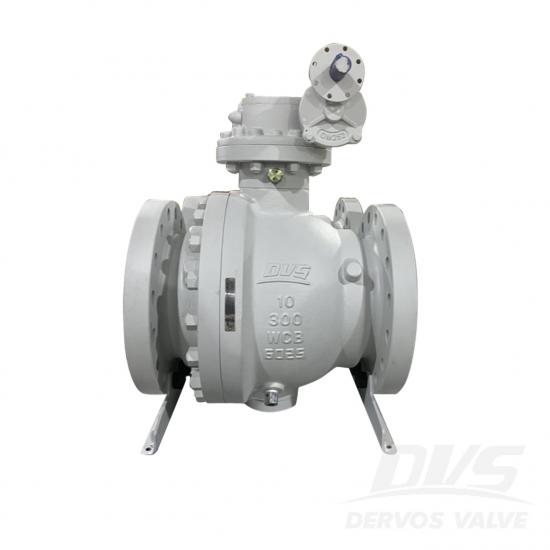

10" 300LB ball valve is made according to API 6D standard. The valve body is made of ASTM A216 WCB. It has the structural characteristics of full bore, fixed ball, anti-fire, anti-static, and anti-flying valve stem design. Its connection mode is RF. And it has turbine operation mode.
Payment:
30% when order confirmed, 70% before shipmentProduct Origin:
ChinaColor:
CustomizationShipping Port:
Shanghai, ChinaLead Time:
30~60 days Ex Works after order confirmationMaterial:
ASTM A216 WCBMethod of Operation:
Turbine OperationProduct Description
|
Type |
Ball Valve |
|
Size |
10" |
|
Pressure |
300LB |
|
Connection |
RF |
|
Operation |
Turbine Operation |
|
Body Material |
ASTM A216 WCB |
|
Design Norm |
API 6D |
|
Face to Face Dimensions |
ASME B16.10 |
|
Flange Ends Dimensions(RF) |
ASME B16.5 |
|
Test & Inspection Code |
API 598 |
|
Wall Thickness |
ASME B16.34 |
|
Temperature |
-29 ~ 120°C |
|
Applicable Medium |
Water, Oil and Gas |
Features
1. Low fluid resistance, simple structure, small volume, and light weight;
2. Tight and reliable, with good sealing performance, easy operation, and quick opening and closing.

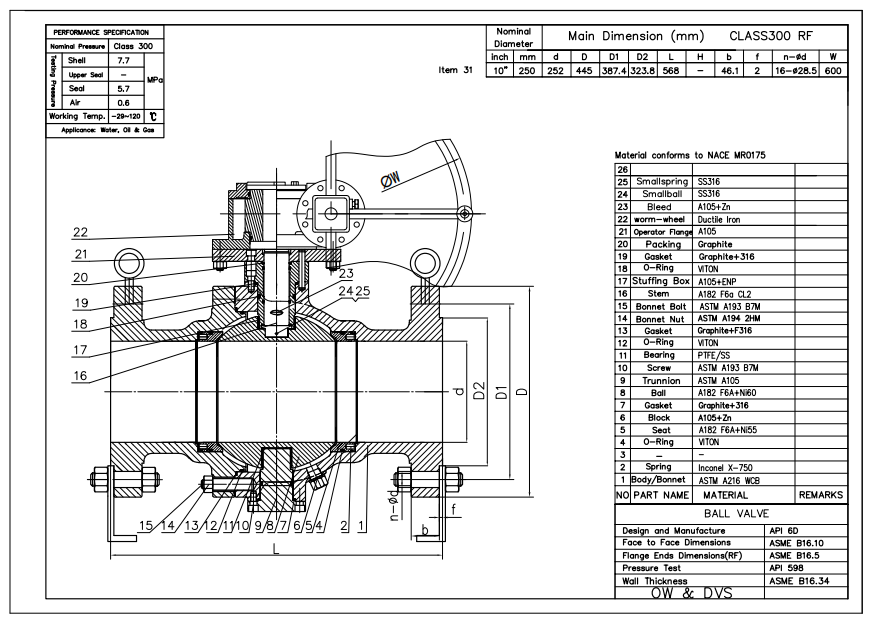

Technical Drawing

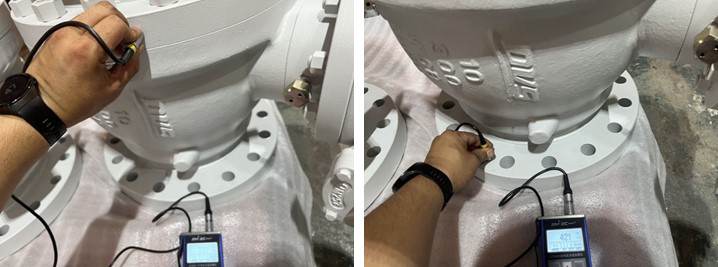

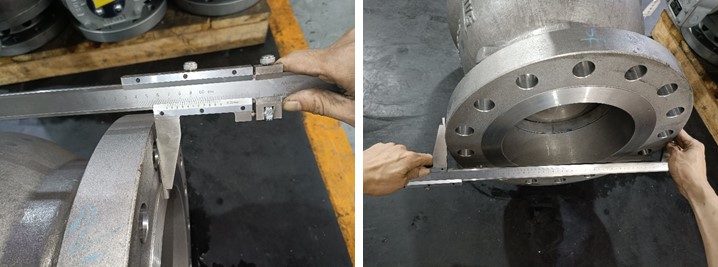

Dimension Checking

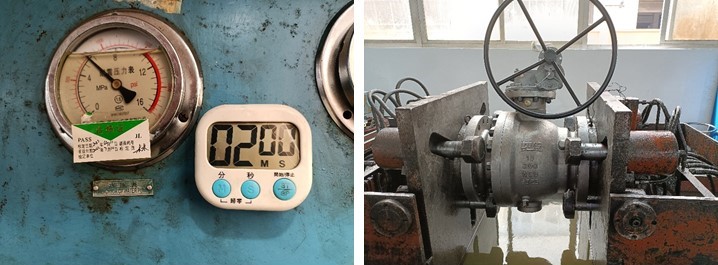

Pressure Testing
Painting

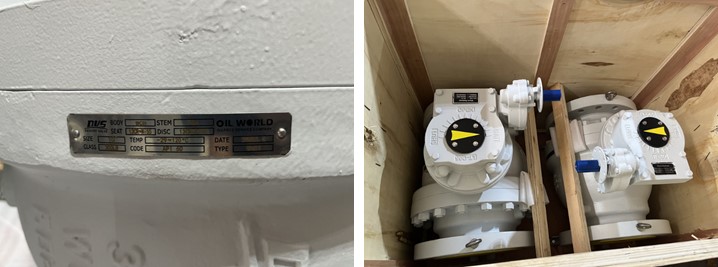

Nameplate & Packing

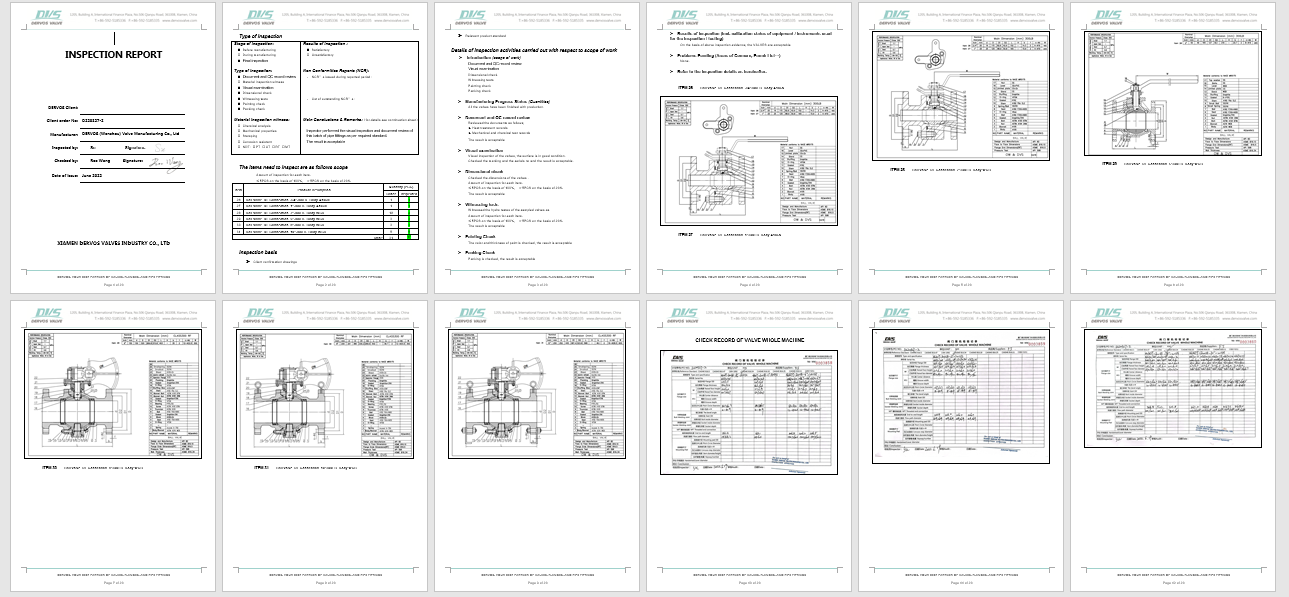

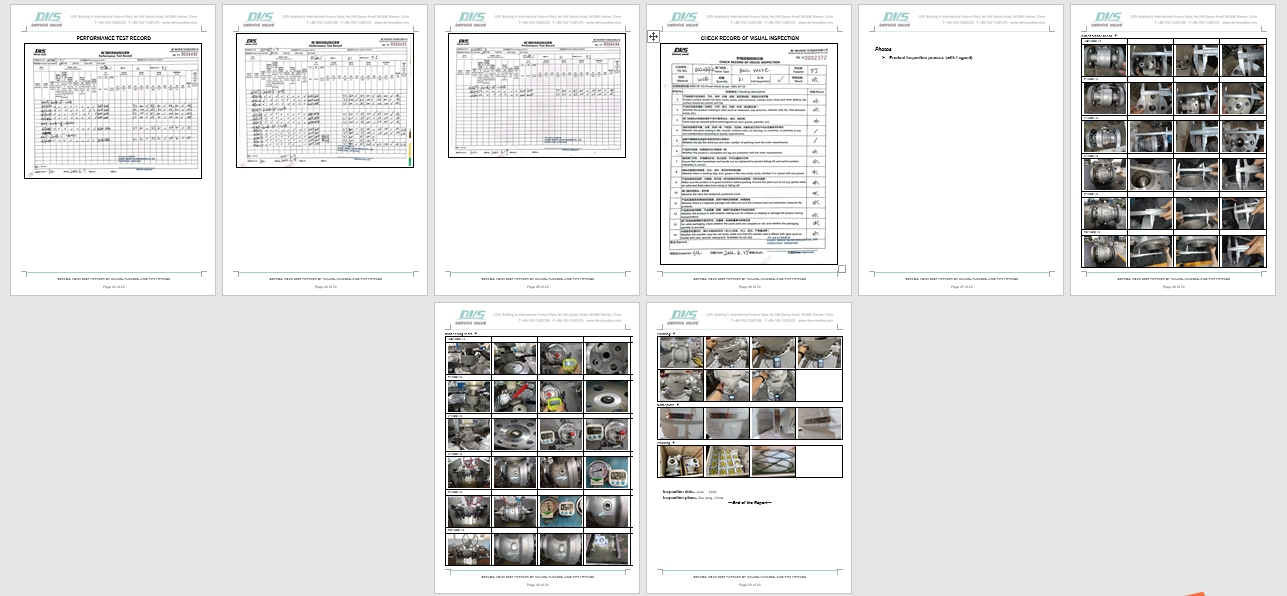

Inspection report
