Product Origin:
ChinaColor:
CustomizationShipping Port:
Ningbo/Shanghai,ChinaLead Time:
30~55 days Ex Works After Order ConfirmationMaterial:
ASTM A105Method of Operation:

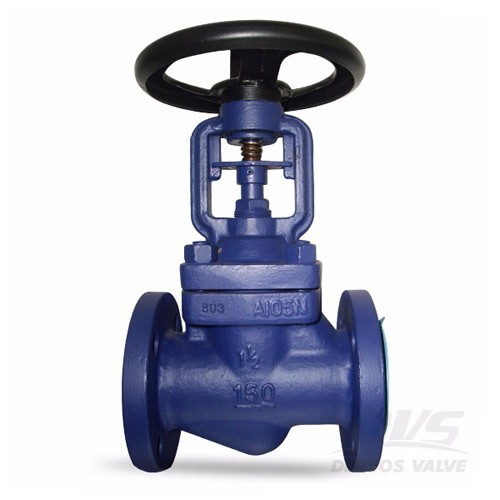

HandwheelThe bellows seal globe valve adopts the bellows seal design, which completely eliminates the shortcomings of the normal valve stem packing seal aging and easy to leak, not only improves the energy efficiency, increases the safety of the production equipment, reduces the maintenance cost and frequent maintenance. It also provides a clean and safe working environment.Its simple structure and the low price makes it almost no "competitors".
Quick Detail
|
Type |
Globe Valve |
|
Norminal Size |
1.5 Inch |
|
NorminalPressure |
150LB |
|
Construction |
Bolted Bonnet, Outside Screw & Yoke, Rising Stem, Bellow Seal |
|
ConnectionType |
RF Flange |
|
Operation |
Handwheel |
|
Design Code |
ASME B16.34, API 602 |
|
Face to Face |
ASME B16.10 |
|
Flange End |
ASME B16.5 |
|
Test & Inspection |
API 598 |
|
Body Material |
ASTM A105 |
|
ApplicableTemp |
-29℃~+425℃ |
|
Application |
Water, Oil, Gas |
Structure Feature
1. Double seal design (corrugated pipe + packing). If the bellows fails, the stem packing will also be avoided;
2. External leakage, and in line with international sealing standards;
3. No fluid loss, reduce energy loss, and improve plant equipment safety;
4. Long service life, reduce the number of maintenance, reduce operating costs;
5. Rugged bellows seal design, ensuring zero leakage of the valve stem, providing maintenance-free conditions.

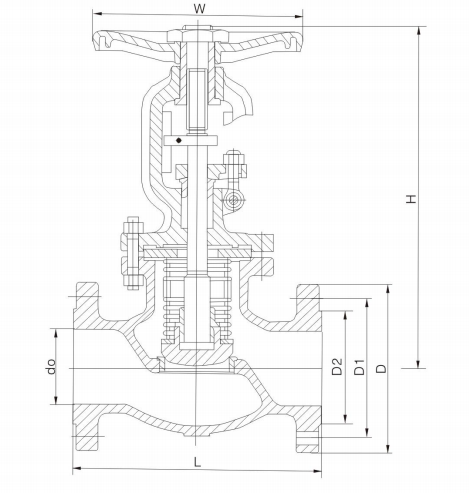

Technical Drawing

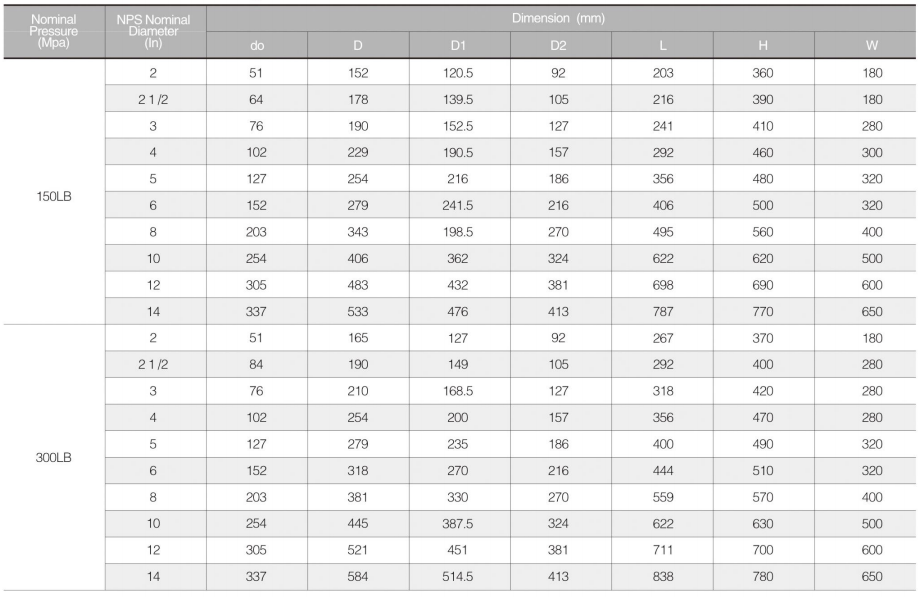

Dimension
Our Service
Dervos customer service is one of our biggest competitive advantages. In Dervos, we provide-
1.Quotation within 24 hours or no later than 3 days
This will let you meet the quotation submission deadline and enhance your working efficiency
2.Weekly status report of your order
In this way, you will have a clear picture of your order. You do not need to waste time on pushing us for status update
3.An 18-month warranty period
A warranty certificate will issued after shipment and you will not have any concern after buying valves.
4.Solutions to complaints within 3 days
Quick and responsible actions to complaints will protect your reputation and reduce the financial loss as much as possible.
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
The 1.5 inch 800LB bellow seal globe valve is designed with outside screw and yoke, handwheel operation, sw end. The reduced port globe valve is has forged steel A105N body. Design Feature 1.Outside screw and yoke 2.Rising stem 3.Bolted bonnet design 4.Bellow seal packing for reliable stem sealing 5.Reduced bore design 6.Handwheel Operated Quick Detail Type Globe Valve Size 1.5'' Design Pressure Class 800 Structure BB, OS&Y, Reduced Port, Bellow Seal Packing Connection Type Socket Weld Operation Handwheel Design Code API 602 End to End ASME B16.10 Connection End ASME B16.11 Pressure & Temperature ASME B16.34 Test & Inspection Standard API 598 Body Material Forged Steel ASTM A105 Trim Material Trim 8 Applicable Temperature -29℃~+425℃ Application W.O.G Origin China Related Knowledge What is a bellw seal valve? For bellow seal globe valves, the lower end bellows is welded on the valve stem to prevent the process fluid from eroding the valve stem. The other end is placed between the valve body and the valve cover to form a static seal. The double seal design ensure that if bellow seal pakcing fails, the stem packing will also function. The bellow seal globe valves are applicable for media like steam, flammable, explosive, heat transfer oil, high purity, and toxic media etc. Special Tests Besides general tests we will do (hydraulic and air test), we could also do tensile strength test, metallographic test, fugitive emission test, and NDE test (UT,RT,PT,MT) upon customers’ specific requests.
Dervos bellow seal globe valve is designed as per EN13709 with face to face dimesnsion per EN558. The special designed bellow seal make sure zero leakage from stem. Quick Detail Type Globe Valve Norminal Size DN 65 NorminalPressure PN 40 Construction Bolted Bonnet, Rising Stem, Bellow Sealed ConnectionType RF Flange Operation Handwheel Design Code EN13709 Face to Face EN 558 Connection EN1092 Test & Inspection EN12266 Body Material Carbon Steel 1.0619 Bellow Material SS304, SS316, SS316L and etc ApplicableTemp -29℃~+420℃ Application Water, Oil, Gas Structure Feature 1. Standard design of double-wall bellow seal 2. Heat-dissipating bonnet design; 3. With lubricant storage device; 4, With design of circlip to fix stem nut; 5. Reasonable product structure, reliable sealing performance and good appearance; 6. The sealing surface is welded with Co-based hard alloy, which has good wear resistance, corrosion resistance, anti-friction performance and long service life; 7. Stem has nitriding treatment with good corrosion resistance and anti-friction performance; 8. With position indicator for stem movement;
1" 600LB plug valve is made according to API 6D standard. The valve body is made of A105. It has the structural characteristics of oil sealed and full bore. Its connection mode is FNPT. And it has handle (with locking device) operation mode.
The 3 way T type ball valve owns flange connection, gearbox, ss304 body, ball and stem. The 3 inch flanged ball valve features in its T type three way ports which could connect any pair of ports or three ports together. Quick Detail Type Ball Valve Size 3" Pressure ANSI 300 Construction Three Way Ball Valve Connection Flanged Connection Operation Mode Gearbox Body Material A182 F304 Manufacture and Design API 6D Pressure & Temp ASME B16.34 End to End Code ASME B16.10 End Connection ASME B16.5 Inspection API 6D, API 598 Temperature Range -29℃~+200℃ Medium WOG Related Knowledge What is the difference between T port and L port 3-way ball valve? Normally speaking, 3-way ball valve can be divided into T type and L type. A T port three-way ball valve can connect any two ports, and even connect all three ports together at the same time. However, an L port three-way ball valve can only connect the center port with either side port or disconnect three ports. FAQ 1. Can the orders always be delivered on time? Our purchasing team follows up very closely with each order to make sure on-time delivery for most of orders. In 2018, more than 90% orders were delivered on time, and we are dedicated to doing better. 2. What’s the normal delivery lead time? For normal material, usually the delivery time is about 35~40 days, and for forged material, the delivery can even be shortened to 20~25 days. We believe the short lead time can make our offer more competitive and help you secure more orders. 3.Do you have different price levels for us? With our numerous suppliers, different price levels are available with us, so we are able to help you win more customer from different markets requesting for high, medium and low prices.
The 8 inch 150 LB dual disc non return check valve, designed per API 594, has dual plate and lug connection. The retainerless dual plate check valve is made of duplex stainless steel 4A as its body and trim material. Quick Detail Type Check Valve Size 8'' DesignPressure Class 150 Construction Dual Plate Type, Retainerless Connection Lug Type Design & Manufacture API 594 End to End ASME B16.10 Connection ASME B16.5 Pressure & Temp ASME B16.34 Test & Inspection API 598 Body Material Duplex Stainless Steel 4A Trim Material Duplex Stainless Steel Media W.O.G. Design Feature 1.Shor face to face dimension 2.Small in size with light weight 3.Swift close of disc with small water hammer 4.Vertically or horizontally installed 5.Smooth flow passway with small flow resistance 6.Long cycle life and high reliability
2" 150LB ball valve is made according to ISO17292 standard. The valve body is made of B148 C95400. It has the structural characteristics of full flow, floating ball, anti-fire, anti-static and anti-flying valve stem. Its operation mode is lever and connection mode is RF.
8" 150LB butterfly valve is made according to API 609 standard. The valve body is made of WCB. It has the structural characteristics of double eccentric, high performance and zero leakage. Its connection mode is lug. And it has turbine operation mode.
1" 2500LB strainer is made according to ASME B16.34 standard. The valve body is made of ASTM A182 F316H. It has the structural characteristics of pressure self sealing and Y type. Its connection mode is BW SCH160.
DN80 PN10 exhaust valve is made according to CJ/T217-2005 standard. The valve body is made of QT450. Its connection mode is EN1092-1.
3/4" PN16 floating ball valve is made according to ASME B16.34 standard. The valve body is made of A105. It has the structural characteristics of floating ball, full bore, anti-fire and anti-static. Its connection mode is M NPT. And it has lever operation mode.
6" 300LB globe valve is made according to BS1873 standard. The valve body is made of ASTM A216 WCB. It has the structural characteristics of straight through, rising stem. Its connection mode is RF. And it has gearbox with lock operation mode.
Y type globe valve. CF8 body/bonnet, F304 disc/stem, SS304+flexible graphite gasket and bronze bolt and nut. Plug type disc and Raised face flange connection. Quick Detail Type Globe Valve Size 4 inch DesignPressure CL150 Construction Y Type Globe Valve Connection Type Raised Face Flange Connection Operation Handwheel Design Code ASME B16.34 Face to Face ASME B16.10 Test & Inspection API 598 Body Material CF8 Temperature Range -29~538℃ Application WOG
